SWB 320 Series Swing-Out Ball Valve with 0.25" Orifice & 8 mm SUPERLOK End Connections
SWB 320 Series Swing-Out Ball Valve with 0.25" Orifice & 8 mm SUPERLOK End Connections
SKU:SWB-934791
SWB 320 Series Ball Valve with 0.25" Orifice & 8mm SUPERLOK End Connections - Ideal for precise flow control in industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve with 0.25" Orifice & 8 mm SUPERLOK End Connections
$89.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve with 0.25" Orifice & 8 mm SUPERLOK End Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

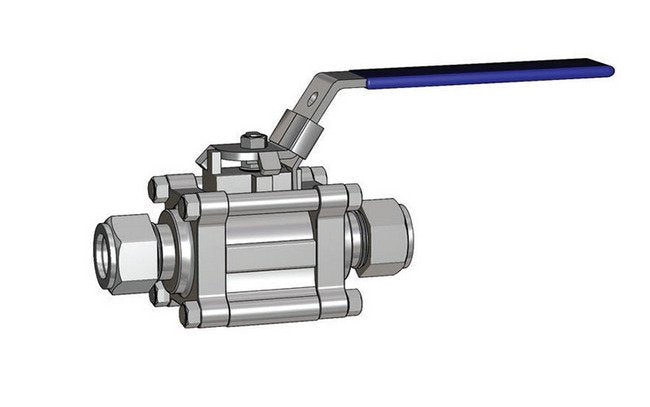

The SWB 320 Series Swing-Out Ball Valve features a 0.25-inch orifice size and 8 mm SUPERLOK® end connections, ensuring precise flow control and optimal performance. With a pressure rating of 3000 psig and a temperature range of -20 to 450°F, this valve is designed to deliver reliable operation in a wide range of industrial applications. Each valve undergoes rigorous testing to guarantee quality and safety, meeting industry standards for durability and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

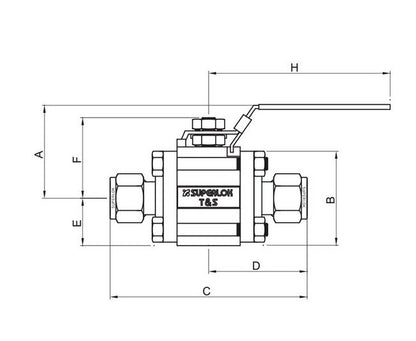

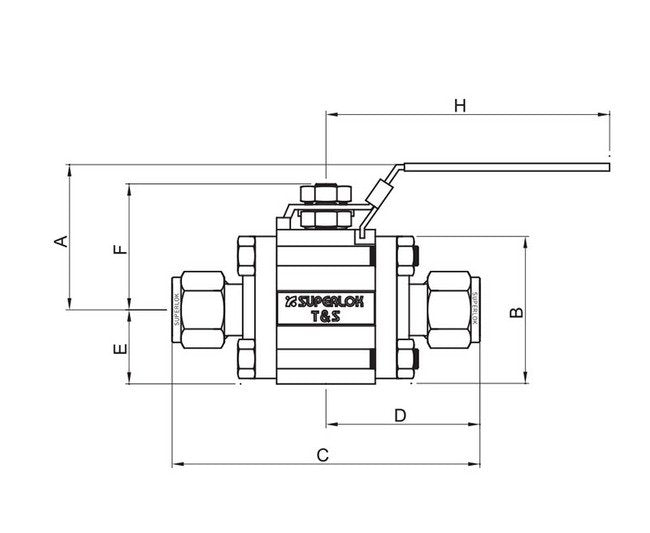

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension C
80.8 mm
Technical Specs Dimension D
40.40 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
8 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
2.5
Technical Specs Orifice Size
6.4 mm | 0.25 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
