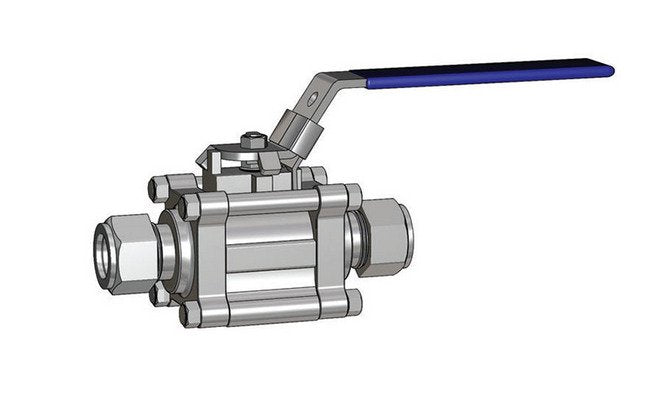

• SWB 320 Series Swing-Out Ball Valve with 0.281" Orifice & 3/8" SUPERLOK® End Connections - Image 1
  • SWB 320 Series Swing-Out Ball Valve with 0.281" Orifice & 3/8" SUPERLOK® End Connections - Image 2
1 2
Superlok-Mako Products LLC →

SWB 320 Series Swing-Out Ball Valve with 0.281" Orifice & 3/8" SUPERLOK® End Connections

SWB 320 Series Swing-Out Ball Valve with 0.281" Orifice & 3/8" SUPERLOK® End Connections

SWB-04dde5

High-performance SWB 320 Series Swing-Out Ball Valve with 0.281" Orifice & 3/8" SUPERLOK® Connections

$89.99
$89.99
Sale

Initiate Order

SWB 320 Series Swing-Out Ball Valve with 0.281" Orifice & 3/8" SUPERLOK® End Connections

SWB 320 Series Swing-Out Ball Valve with 0.281" Orifice & 3/8" SUPERLOK® End Connections

$89.99

Quantity: 1

Claim Your Seller Account

SWB 320 Series Swing-Out Ball Valve with 0.281" Orifice & 3/8" SUPERLOK® End Connections

SWB 320 Series Swing-Out Ball Valve with 0.281" Orifice & 3/8" SUPERLOK® End Connections

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SWB 320 Series Swing-Out Ball Valve is designed for optimal performance in high-pressure applications, with a pressure rating of 3000 psig and a temperature range of -20 to 450°F. Its 0.281" orifice size and 3/8" SUPERLOK® end connections ensure efficient flow control. Each valve undergoes rigorous testing to meet industry standards for leak prevention and durability. With precise dimensions and a Cv of 3.8, this valve is reliable, versatile, and adaptable to various system requirements.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note

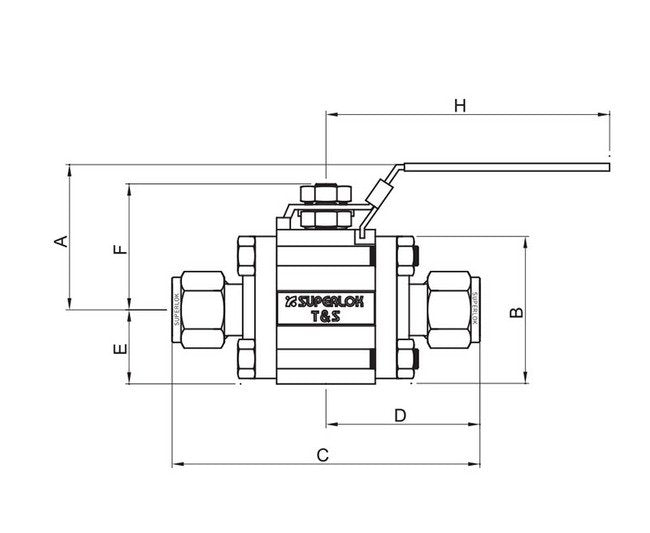

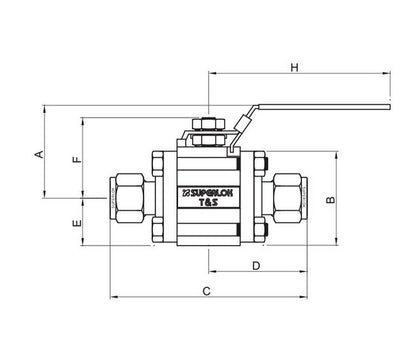

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension C
80.8 mm
Technical Specs Dimension D
40.40 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
3/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
3.8
Technical Specs Orifice Size
7.1 mm | 0.281 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
