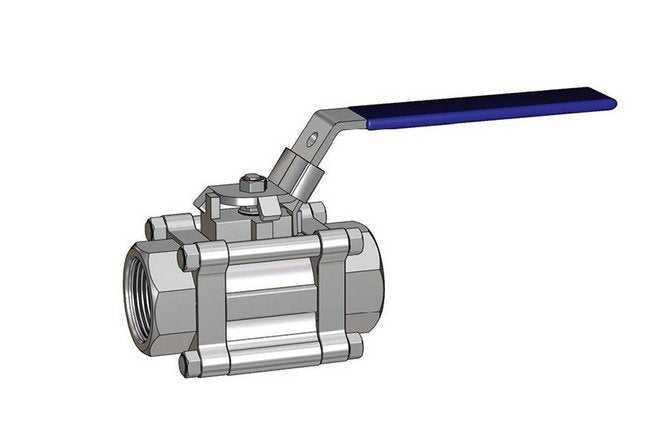

SWB 320 Series Swing-Out Ball Valve with 0.516" Orifice & 1/2" Female PT End
SWB 320 Series Swing-Out Ball Valve with 0.516" Orifice & 1/2" Female PT End
SKU:SWB-539a97
Precision meets durability with the SWB 320 Series Swing-Out Ball Valve. Ideal for high-pressure applications, versatile end connections, and compliant with industry standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve with 0.516" Orifice & 1/2" Female PT End
$89.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve with 0.516" Orifice & 1/2" Female PT End
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid control systems with the SWB 320 Series Swing-Out Ball Valve. With a precise 0.516 inch orifice size and robust 1/2 inch female PT end connections, this valve provides reliable performance in pressure ranges of up to 3000 psig. The valve's -20 to 450ºF temperature rating, Cv of 12, and rigorous testing standards ensure durability and efficiency. Accommodating various end connection requests, this valve guarantees versatility and compliance with industry standards, making it an ideal choice for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

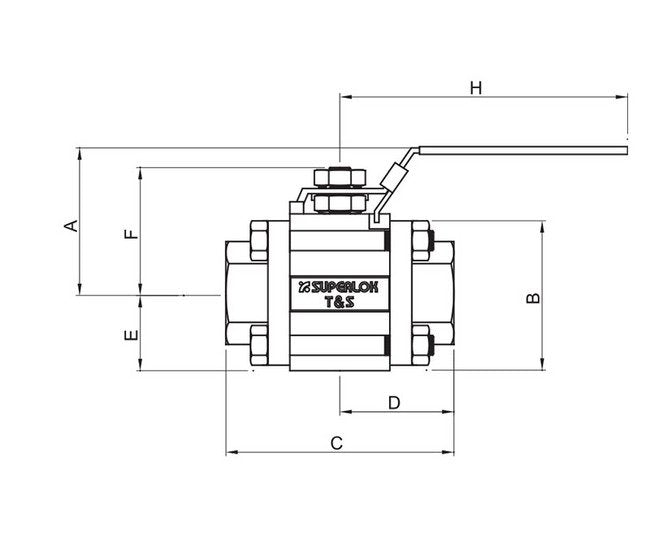

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension C
68.9 mm
Technical Specs Dimension D
34.45 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs End Connections
1/2 in. Female Port Thread (PT)
Technical Specs Flow Coefficients Cv
12
Technical Specs Orifice Size
13.1 mm | 0.516 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
