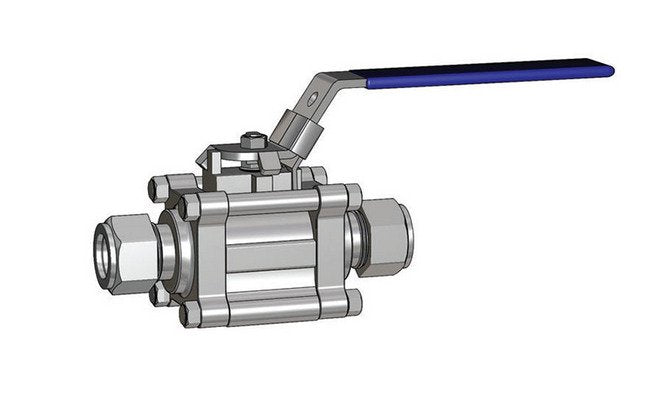

SWB 320 Series Swing-Out Ball Valve with 0.875 in Orifice & 25mm SUPERLOK® End Connections
SWB 320 Series Swing-Out Ball Valve with 0.875 in Orifice & 25mm SUPERLOK® End Connections
SKU:SWB-40df09
High-performance SWB 320 Series Swing-Out Ball Valve for 3000 psig, -20 to 450 ºF, with 0.875 in orifice & 25mm SUPERLOK® connections.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve with 0.875 in Orifice & 25mm SUPERLOK® End Connections
$159.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve with 0.875 in Orifice & 25mm SUPERLOK® End Connections
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series Swing-Out Ball Valve features a 0.875-inch orifice size and 25mm SUPERLOK® end connections, designed for high-pressure applications with a pressure rating of 3000 psig. With a temperature rating from -20 to 450 ºF, this valve ensures reliable performance in a wide range of environments. Each valve undergoes rigorous testing to meet industry standards, including nitrogen and hydrostatic shell tests, ensuring leak-free operation. Its compact design and precise dimensions make it a versatile and durable choice for industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

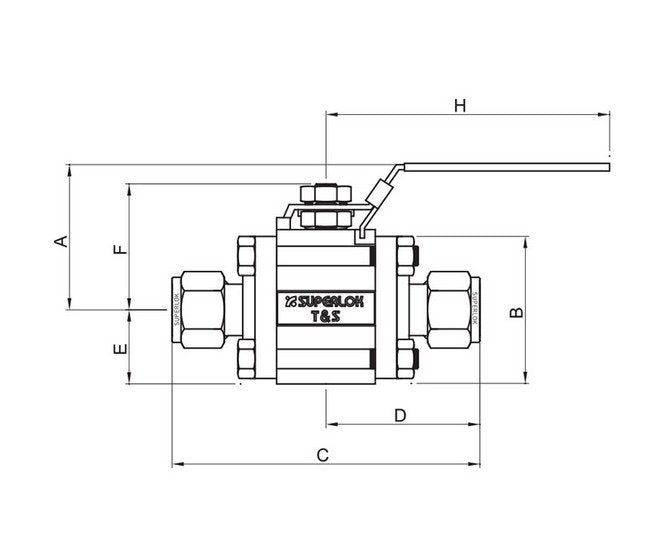

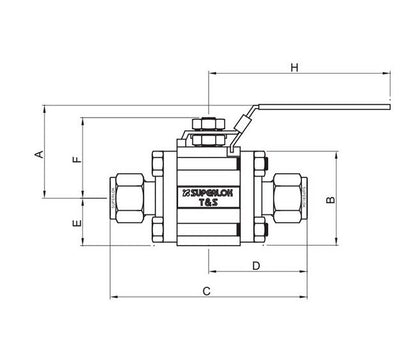

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension C
136.7 mm
Technical Specs Dimension D
68.35 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs End Connections
25 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
40
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
