SWB 320 Series Swing-Out Ball Valve with 0.875" Orifice Size
SWB 320 Series Swing-Out Ball Valve with 0.875" Orifice Size
SKU:SWB-3e982b
High-performance SWB 320 Series Swing-Out Ball Valve with 0.875" Orifice Size, ideal for high-pressure applications. Rigorously tested for reliability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve with 0.875" Orifice Size
$299.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve with 0.875" Orifice Size
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

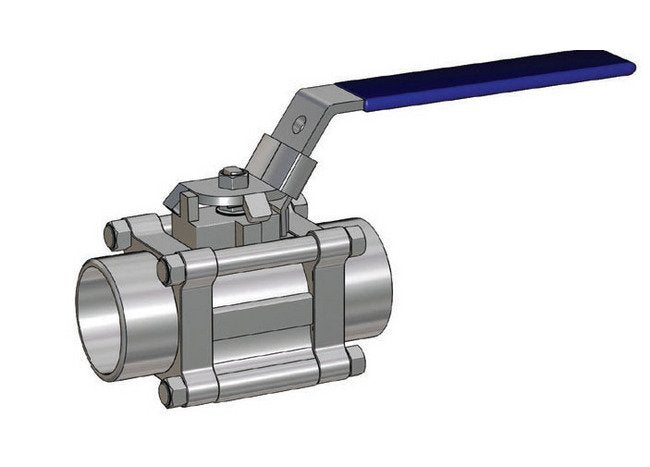

The SWB 320 Series Swing-Out Ball Valve features a precise 0.875 inch orifice size and 3/4 inch socket weld end connections, designed for high-pressure applications up to 3000 psig. With a temperature rating from -20 to 450°F, this valve offers reliable performance in a wide range of conditions. Each valve undergoes rigorous nitrogen and hydrostatic testing to ensure leak-free operation, meeting quality standards for government and institutional procurement. Dimensions are subject to change, and custom options are available upon request.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

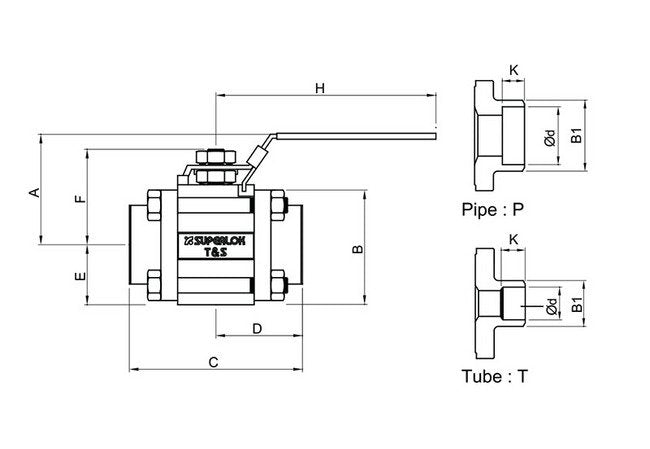

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
27.2 mm
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension B1
42.16 mm
Technical Specs Dimension C
92.0 mm
Technical Specs Dimension D
46.00 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs Dimension K
12.7 mm
Technical Specs End Connections
3/4 in. Socket Weld
Technical Specs Flow Coefficients Cv
36
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
