Switch Mode Power Supplies - Wall Plug-In Transformers

Name: Switch Mode Power Supplies - Wall Plug-In Transformers
Brand: Triad Magnetics
SKU: WAL-afd7f0
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-afd7f0

Enhance design efficiency with our compact, regulated Switch Mode Power Supplies. Ideal for noise reduction and safety in end products.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

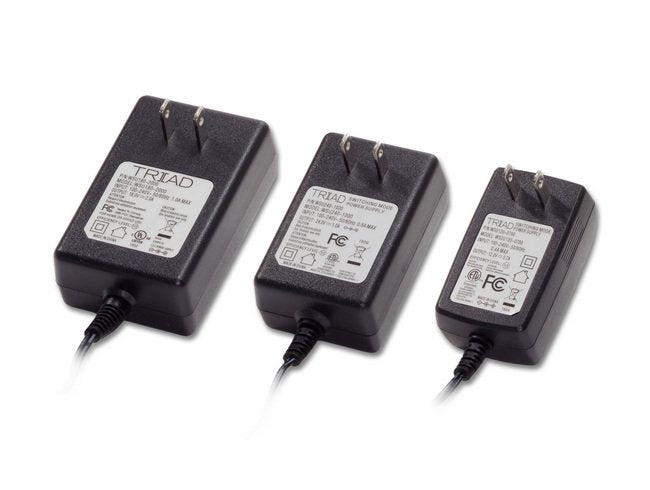

Enhance your product design efficiency with our Triad prepackaged wall plug-in switch mode power supplies. These power sources are designed to reduce noise levels, size, and weight in your end products by eliminating the need for internal cooling devices. With regulated output voltage, safer lower outputs, and a wide range of voltages and power levels available, our compact power supplies ensure heat is kept away from sensitive circuits. The completely enclosed design prevents tampering, and the models come with generous six-foot cord lengths for added convenience. Operates at 50-60 Hz frequency with Level IV and V efficiency, meeting EIAS 2007 energy efficiency requirements.

Product Specifications

Case Dimensions Depth D

1.22 in | 31.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.89 in | 48.00 mm

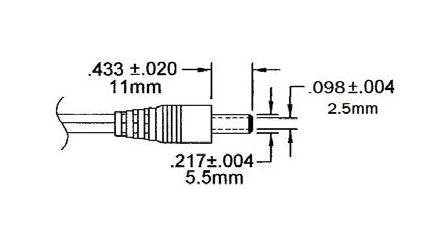

Output Plug Dimensions Inside Diameter Id

0.098Â±0.004 in | 2.5 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Input Operating Frequency

50 Hz | 60 Hz

Specifications Input Voltage Ac

100 to 240 V

Specifications Maximum Power

23.90 W

Specifications Output Current

1.77 A

Specifications Output Current Dc

1.77 A

Specifications Output Voltage Dc

13.5 V

Specifications Polarity Center

Positive

Specifications Type

Switchmode
