Switch Mode Power Supplies - Wall Plug-In Transformers
Switch Mode Power Supplies - Wall Plug-In Transformers
SKU:WAL-a3a27d
Enhance product designs with efficient and safe wall plug-in power supplies meeting EIAS 2007 standards. Choose reliability and performance!
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Power Supplies - Wall Plug-In Transformers
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Power Supplies - Wall Plug-In Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

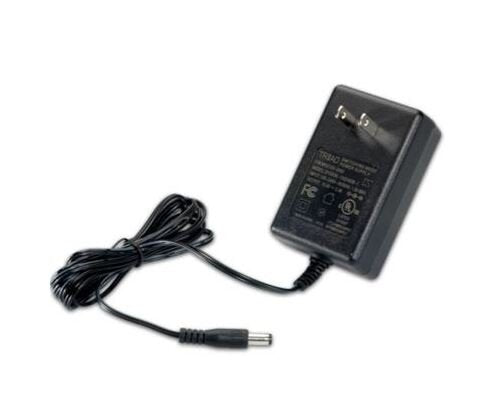

Upgrade your product designs with Triad prepackaged wall plug-in power supplies. Designed to enhance efficiency and reduce noise levels, these compact power sources offer regulated output voltage and increased safety. With a variety of voltage options, power levels, and reversed polarity (-R), these wall plug-ins are enclosed for tamper prevention and comply with EIAS 2007 energy efficiency requirements. Equipped with a generous six-foot cord length, these switch mode power supplies are ideal for institutional and consumer applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

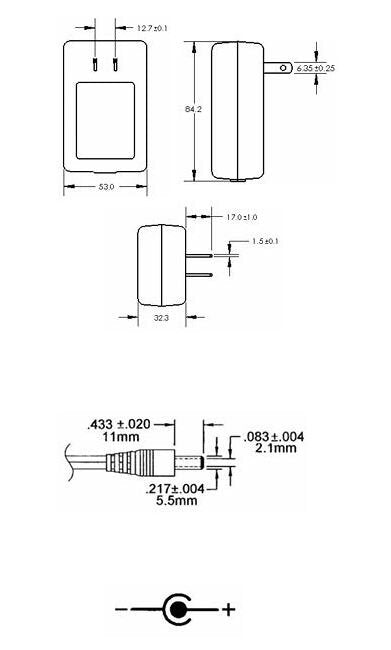

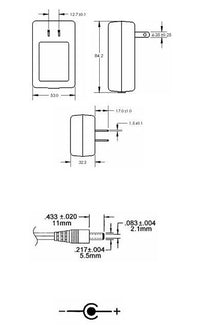

Case Dimensions Depth D
1.27 in | 32.30 mm
Case Dimensions Height H
3.31 in | 84.20 mm
Case Dimensions Width W
2.09 in | 53.00 mm
Electrical Specifications At 25 Degree Celsius C Temperature Max
200 mV
Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
36.00 W
Specifications Output Current
2.0 A
Specifications Output Current Dc
2.0 A
Specifications Output Voltage Dc
18.0 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
