Switch Mode Power Supplies with Wall Plug-in Design

Name: Switch Mode Power Supplies with Wall Plug-in Design
Brand: Triad Magnetics
SKU: WAL-2b45ee
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-2b45ee

Maximize efficiency and reliability with our Switch Mode Power Supplies. Regulated output, compact design, and tamper-proof enclosure for optimal performance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

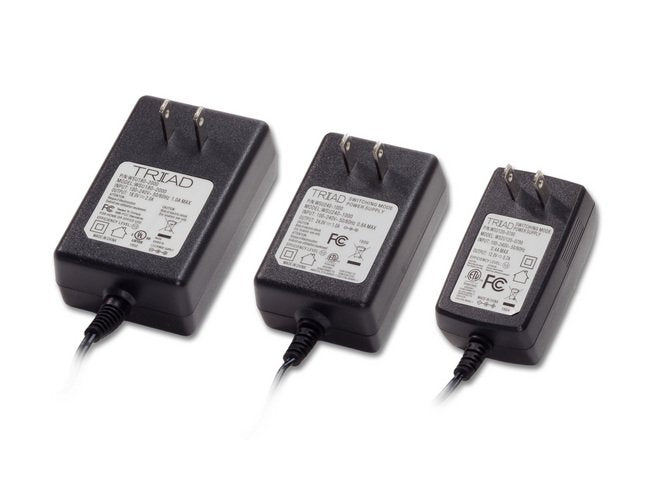

Enhance product efficiency with our Switch Mode Power Supplies featuring a convenient wall plug-in design. These power sources minimize product design time by eliminating the need for internal cooling devices, reducing noise levels, size, and weight. With regulated output voltage, they maintain stability under varying loads, ensuring safe and consistent power supply to your devices. Enclosed for tamper prevention, these compact supplies offer a wide range of popular voltages, power levels, and reversed polarity options. Ideal for sensitive circuits, these supplies meet EIAS 2007 energy efficiency requirements, offering Level IV and V efficiency for reliable performance.

Product Specifications

Case Dimensions Depth D

1.37 in | 34.80 mm

Case Dimensions Height H

2.67 in | 67.70 mm

Case Dimensions Width W

1.81 in | 45.90 mm

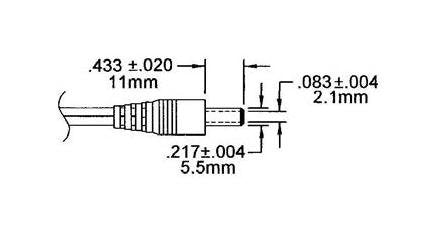

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Input Operating Frequency

50 Hz | 60 Hz

Specifications Input Voltage Ac

100 to 240 V

Specifications Maximum Power

12.00 W

Specifications Output Current

0.50 A

Specifications Output Current Dc

0.5 A

Specifications Output Voltage Dc

24.0 V

Specifications Polarity Center

Negative

Specifications Type

Switchmode
