Switch Mode Power Supply - 15V DC Output, Positive Polarity, Interchangeable Plug

Name: Switch Mode Power Supply - 15V DC Output, Positive Polarity, Interchangeable Plug
Brand: Triad Magnetics
SKU: WAL-b5c529
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-b5c529

Reliable Switch Mode Power Supply with 15.0 V DC Output, Interchangeable Plugs, and Level VI Efficiency.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

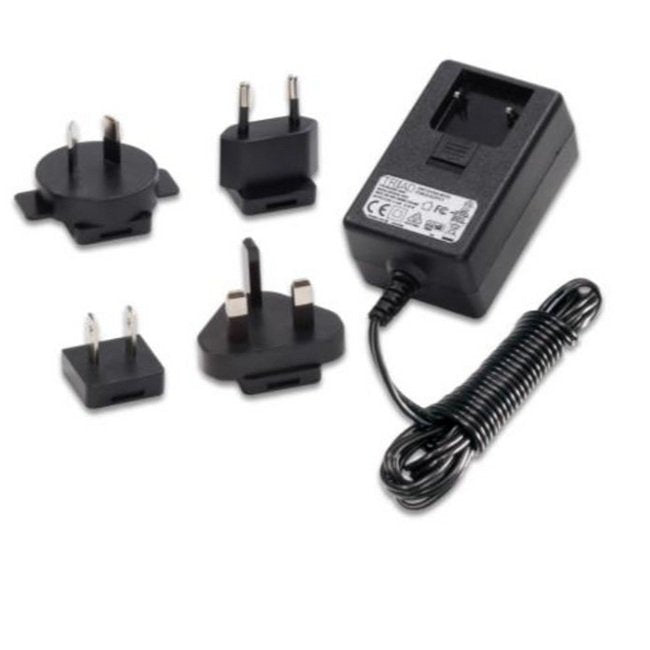

The Switch Mode Power Supply is a versatile solution designed for both consumer and institutional needs. With an input voltage range of 100-240V and interchangeable input plugs, this power supply offers reliable performance. It delivers a steady 15.0 V DC output at 1.6 A, meeting Level VI efficiency standards for energy savings. The compact dimensions make it ideal for various applications, while the positive polarity center ensures compatibility with a wide range of devices.

Product Specifications

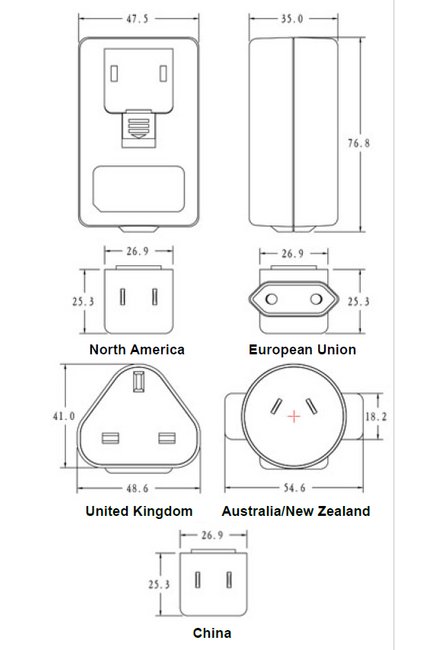

Case Dimensions Depth D

1.38 in | 35.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.87 in | 47.50 mm

Electrical Specifications At 25 Degree Celsius C Temperature Inp

50 to 60 Hz

Electrical Specifications At 25 Degree Celsius C Temperature Out

1.6 A

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Polarity Center

Positive

Specifications Type

Switchmode
