Switch Mode Power Supply - 5V Output, Positive Polarity

Name: Switch Mode Power Supply - 5V Output, Positive Polarity
Brand: Triad Magnetics
SKU: WAL-aaa4ca
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-aaa4ca

Get reliable power with the Switch Mode Power Supply. 5V output, positive polarity, and interchangeale plugs for versatile use.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

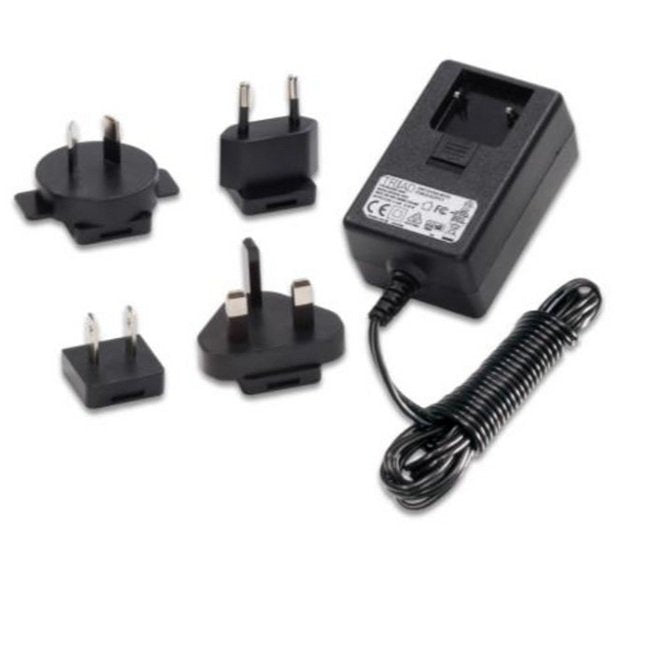

The Switch Mode Power Supply is a versatile solution offering a 5V DC output with positive polarity center and interchangeable input plugs. With an input voltage range of 100-240V, this efficient 24W power supply meets Level VI efficiency standards. Designed for reliability and convenience, it operates at an input frequency of 50-60 Hz and comes in compact dimensions for easy installation. The output plug features precise dimensions for secure connections, making it ideal for various applications in consumer and institutional settings.

Product Specifications

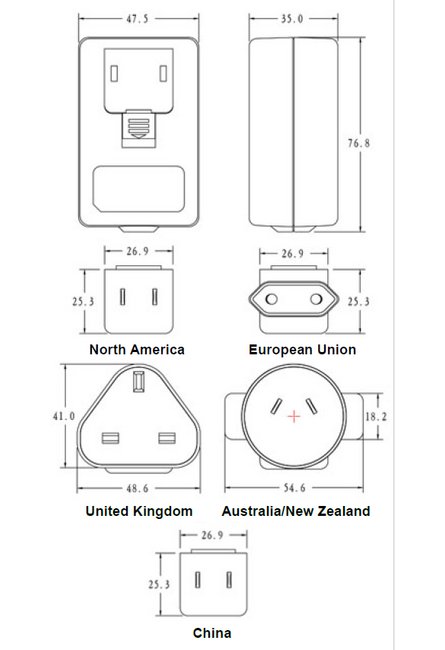

Case Dimensions Depth D

1.38 in | 35.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.87 in | 47.50 mm

Electrical Specifications At 25 Degree Celsius C Temperature Inp

50 to 60 Hz

Electrical Specifications At 25 Degree Celsius C Temperature Out

4.0 A

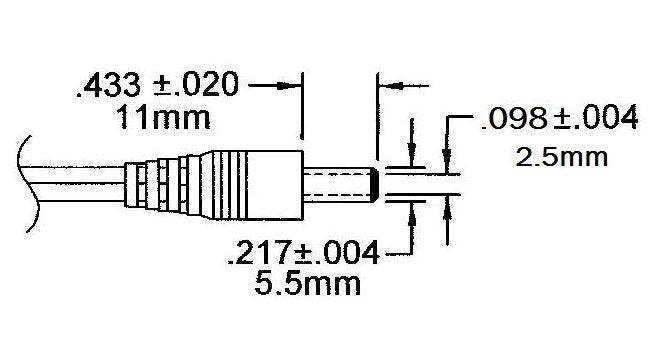

Output Plug Dimensions Inside Diameter Id

0.098Â±0.004 in | 2.5 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Polarity Center

Positive

Specifications Type

Switchmode
