Switch Mode Power Supply Kit
Switch Mode Power Supply Kit
SKU:WAL-23fd8c
Enhance product designs effortlessly with the efficient, safe, and versatile Switch Mode Power Supply Kit.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Power Supply Kit
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Power Supply Kit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

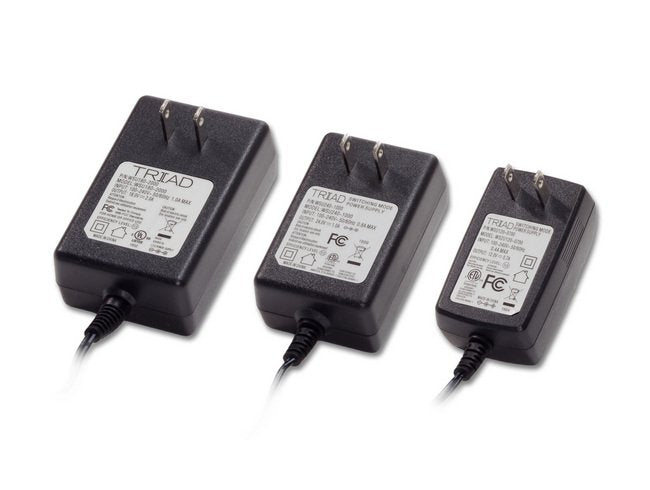

The Switch Mode Power Supply Kit offers efficiency and convenience with prepackaged wall plug-in power supplies that reduce product design time. These compact power sources enhance safety by keeping heat away from sensitive circuits, while providing regulated output voltage. With a wide range of voltages, power levels, and reversed polarity options, this kit meets EIAS 2007 energy efficiency requirements, making it ideal for noise reduction, size optimization, and easy integration. The included six-foot cord ensures flexible installation, while the enclosed design prevents tampering, catering to both consumer and institutional needs.
Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm

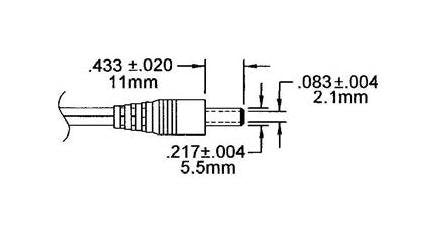

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
12.00 W
Specifications Output Current
0.80 A
Specifications Output Current Dc
0.80 A
Specifications Output Voltage Dc
15.0 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
