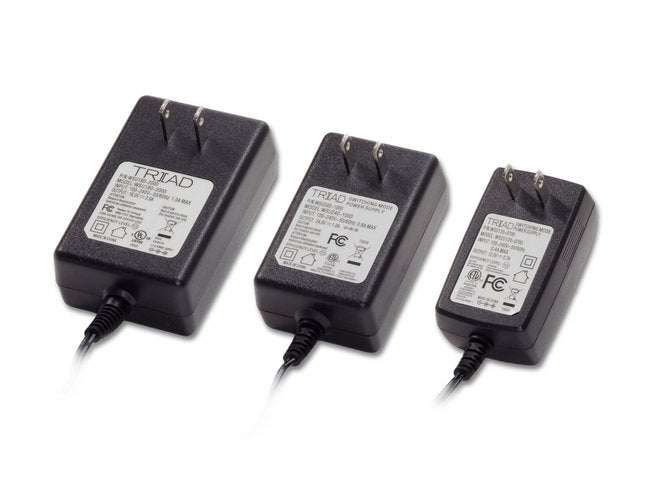

Switch Mode Power Supply Plug-In - 9V 3.5A

Name: Switch Mode Power Supply Plug-In - 9V 3.5A
Brand: Triad Magnetics
SKU: WAL-467418
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-467418

Enhance your devices with efficient and secure power from our Switch Mode Plug-In Supply!

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your electronic devices with the Switch Mode Power Supply Plug-In. Designed for efficiency and safety, this power source eliminates the need for internal cooling devices, reducing noise levels and overall product size. With regulated output voltage and multiple voltage options, these compact units deliver reliable power while meeting EIAS 2007 energy efficiency requirements. Featuring a secure, tamper-proof design, these power supplies are ideal for consumer electronics and institutional applications.

Product Specifications

Case Dimensions Depth D

1.27 in | 32.30 mm

Case Dimensions Height H

3.31 in | 84.20 mm

Case Dimensions Width W

2.09 in | 53.00 mm

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Input Operating Frequency

50 Hz | 60 Hz

Specifications Input Voltage Ac

100 to 240 V

Specifications Maximum Power

31.50 W

Specifications Output Current

3.50 A

Specifications Output Current Dc

3.5 A

Specifications Output Voltage Dc

9.0 V

Specifications Polarity Center

Negative

Specifications Type

Switchmode
