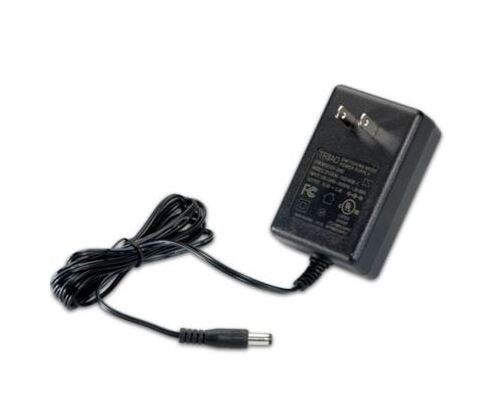

Enhance your product design efficiency with our Triad wall plug-in power supplies. Engineered for noise reduction, compact size, and weight savings, these power sources offer regulated output voltages, ensuring stability even at varying loads. Safety is paramount, with heat isolation for sensitive circuits and tamper-proof enclosures. Operating at 50-60 Hz, these power supplies meet Level IV and V efficiency standards, and comply with EIAS 2007 energy efficiency requirements.
Product Specifications

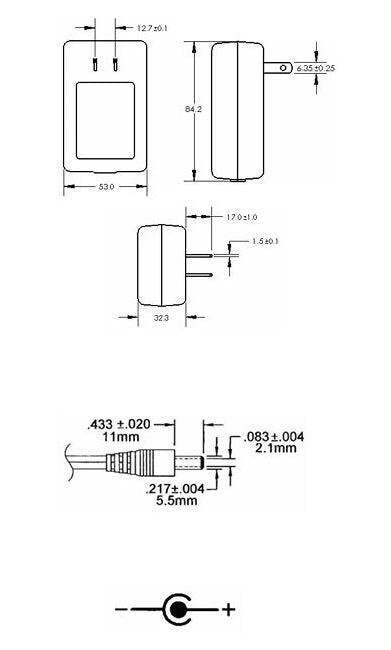

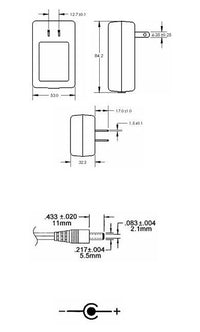

Case Dimensions Depth D
1.27 in | 32.30 mm
Case Dimensions Height H
3.31 in | 84.20 mm
Case Dimensions Width W
2.09 in | 53.00 mm
Electrical Specifications At 25 Degree Celsius C Temperature Max
200 mV
Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
36.00 W
Specifications Output Current
2.0 A
Specifications Output Current Dc
2.0 A
Specifications Output Voltage Dc
18.0 V
Specifications Polarity Center
Positive
Specifications Type
Switchmode
