Switch Mode Power Supply Wall Plug-In
Switch Mode Power Supply Wall Plug-In
SKU:WAL-abbf5a
Enhance your product design with our compact, efficient Switch Mode Power Supply Wall Plug-In. Regulated output, tamper-resistant design, and EISA compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Power Supply Wall Plug-In
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Power Supply Wall Plug-In
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

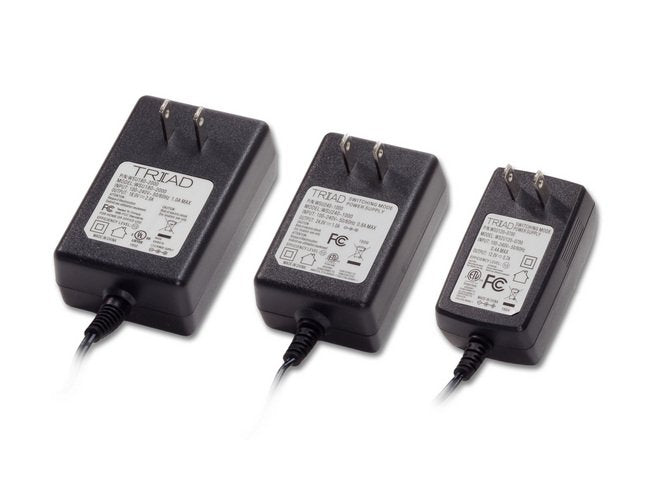

The Switch Mode Power Supply Wall Plug-In is a convenient solution for quick power access. Designed to reduce product design time, these compact power sources eliminate the need for internal cooling devices, enhancing overall efficiency by reducing noise levels and product weight. With a regulated output voltage and a wide range of popular voltages and power levels available, these plug-ins are enclosed for tamper resistance and meet EIAS 2007 energy efficiency requirements for external power supplies. Perfect for maintaining a safe lower output and heat-free environment for sensitive circuits.
Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm

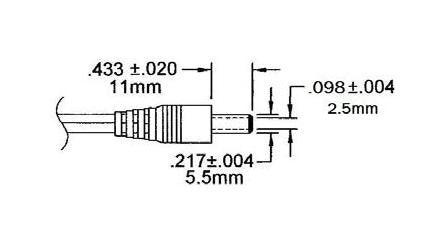

Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
10.00 W
Specifications Output Current
2.0 A
Specifications Output Current Dc
2.0 A
Specifications Output Voltage Dc
5.0 V
Specifications Polarity Center
Positive
Specifications Type
Switchmode
