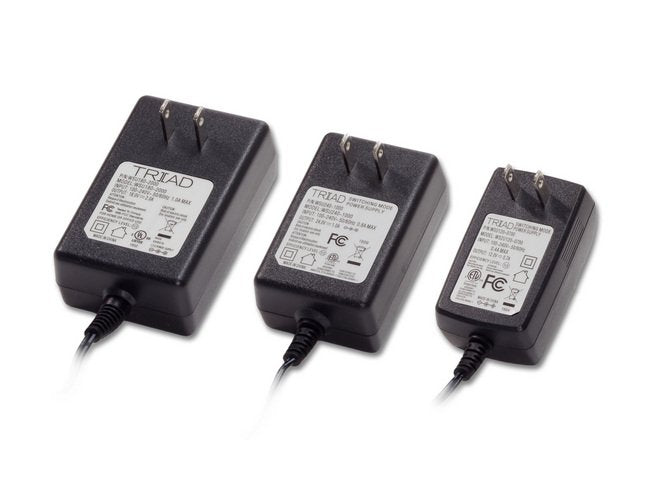

Switch Mode Power Supply Wall Plug-In - 15V DC, 8.4W
Switch Mode Power Supply Wall Plug-In - 15V DC, 8.4W
SKU:WAL-eef0a9
Enhance efficiency & safety with our Switch Mode Wall Plug-In, meeting EIAS 2007 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Switch Mode Power Supply Wall Plug-In - 15V DC, 8.4W
$24.99
Quantity: 1
Claim Your Seller Account
Switch Mode Power Supply Wall Plug-In - 15V DC, 8.4W
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power solution with our Switch Mode Power Supply Wall Plug-In. Designed to reduce noise levels and size, this power source provides a safer lower output to your end product. With regulated voltage and energy efficiency, it meets EIAS 2007 standards. Enjoy the convenience of popular voltages, compact size, and tamper-proof enclosure for enhanced safety.
Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm

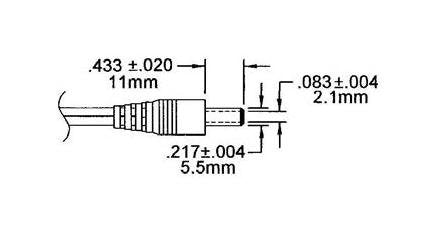

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
8.40 W
Specifications Output Current
0.56 A
Specifications Output Current Dc
0.56 A
Specifications Output Voltage Dc
15.0 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
