Switch Mode Power Supply - Wall Plug-In
Switch Mode Power Supply - Wall Plug-In
SKU:WAL-660786
Enhance device performance with our efficient Switch Mode Power Supply Wall Plug-In. Regulated output, compact design, and energy efficiency certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Power Supply - Wall Plug-In
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Power Supply - Wall Plug-In
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your electronic devices with our premium Switch Mode Power Supply Wall Plug-In. Designed to reduce noise levels, size, and weight, this power source ensures optimal performance by keeping heat away from sensitive circuits. With regulated output voltage and Level IV/V efficiency, it meets EIAS 2007 energy efficiency requirements. The compact design, wide voltage range, and reversed polarity option make it versatile for various applications.
Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm

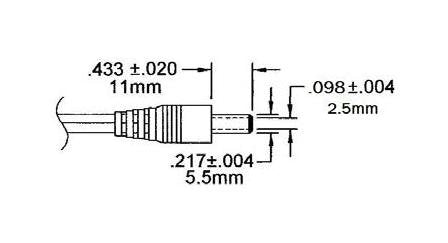

Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
7.50 W
Specifications Output Current
1.25 A
Specifications Output Current Dc
1.25 A
Specifications Output Voltage Dc
6.0 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
