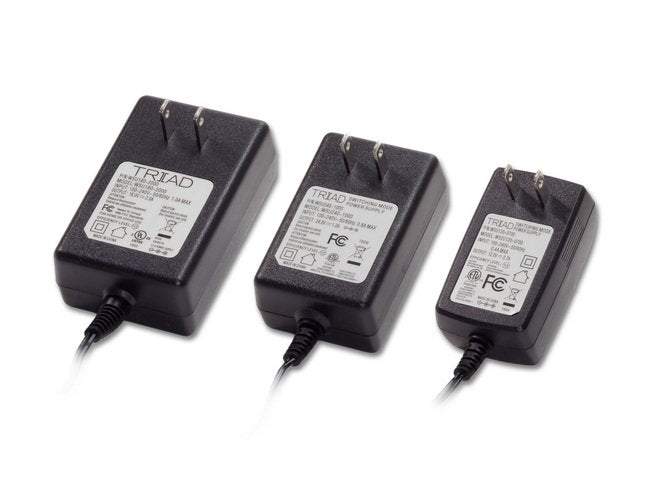

Switch Mode Power Supply - Wall Plug-In

Name: Switch Mode Power Supply - Wall Plug-In
Brand: Triad Magnetics
SKU: WAL-e9ef4c
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-e9ef4c

Enhance product design efficiency and safety with our Switch Mode Power Supply - Wall Plug-In. Meets EIAS 2007 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Switch Mode Power Supply - Wall Plug-In is a versatile solution that minimizes product design time by eliminating the need for internal cooling devices. This compact power source ensures quieter operation and reduced size and weight for end products. With regulated output voltage, it offers enhanced safety and reliability by keeping heat away from sensitive circuits. Available in various voltages, power levels, and polarity options, and encased for tamper-proof protection. This power supply meets EIAS 2007 energy efficiency standards, ensuring superior performance and compliance.

Product Specifications

Case Dimensions Depth D

1.37 in | 34.80 mm

Case Dimensions Height H

2.67 in | 67.70 mm

Case Dimensions Width W

1.81 in | 45.90 mm

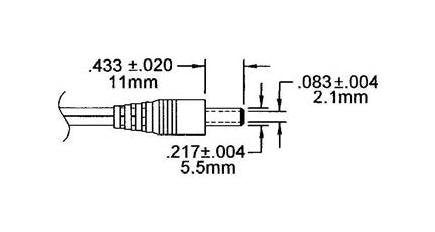

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Input Operating Frequency

50 Hz | 60 Hz

Specifications Input Voltage Ac

100 to 240 V

Specifications Maximum Power

11.88 W

Specifications Output Current

0.66 A

Specifications Output Current Dc

0.66 A

Specifications Output Voltage Dc

18.0 V

Specifications Polarity Center

Negative

Specifications Type

Switchmode
