Switch Mode Power Supply Wall Plug-In - Efficient and Reliable
Switch Mode Power Supply Wall Plug-In - Efficient and Reliable
SKU:WAL-95e103
Enhance your power supply with our efficient Switch Mode Wall Plug-Ins - compliant and reliable.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Power Supply Wall Plug-In - Efficient and Reliable
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Power Supply Wall Plug-In - Efficient and Reliable
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power solutions with our Switch Mode Power Supply Wall Plug-Ins. Designed to reduce design time, noise levels, and product size, these compact power sources offer regulated output voltage and enhanced safety. With wide voltage options, high efficiency levels, and compliance with EIAS 2007 energy efficiency standards, our wall plug-ins are perfect for both consumer and institutional needs.
Product Specifications
Case Dimensions Depth D
1.22 in | 31.00 mm
Case Dimensions Height H
3.02 in | 76.80 mm
Case Dimensions Width W
1.89 in | 48.00 mm

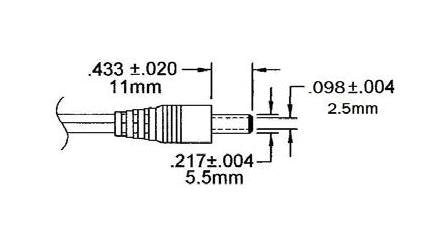

Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
18.00 W
Specifications Output Current
2.4 A
Specifications Output Current Dc
2.4 A
Specifications Output Voltage Dc
7.5 V
Specifications Polarity Center
Positive
Specifications Type
Switchmode
