Switch Mode Power Supply - Wall Plug-In Transformer
Switch Mode Power Supply - Wall Plug-In Transformer
SKU:WAL-c4420d
Enhance design efficiency with our safe, compact switch mode power supply for wall plug-ins.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Switch Mode Power Supply - Wall Plug-In Transformer
$24.99
Quantity: 1
Claim Your Seller Account
Switch Mode Power Supply - Wall Plug-In Transformer
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance product design efficiency with our Triad wall plug-in switch mode power supplies. Designed to reduce noise levels, size, and weight, these compact power sources safeguard sensitive circuits by maintaining a safe lower output. Enclosed to prevent tampering, our power supplies offer regulated voltage outputs, optional reversed polarity, and operate efficiently at 50-60 Hz. With Level IV and V efficiency, these units meet EIAS 2007 energy efficiency requirements for external power supplies, ensuring reliability and conformity to industry standards.
Product Specifications

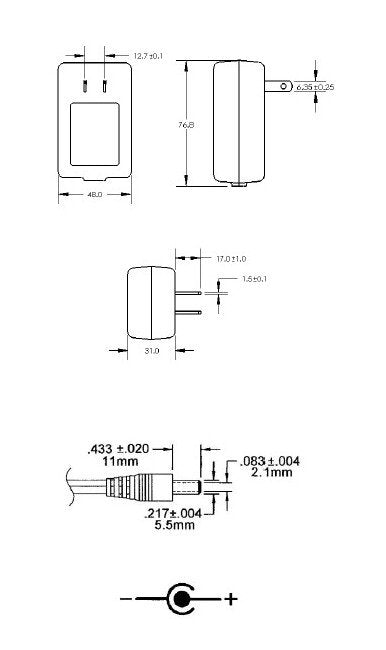

Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm
Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
11.88 W
Specifications Output Current
0.88 A
Specifications Output Current Dc
0.88 A
Specifications Output Voltage Dc
13.5 V
Specifications Polarity Center
Positive
Specifications Type
Switchmode
