Triad Switch Mode Wall Plug-In Power Supplies: Efficient, Regulated, and Safe - Ideal for noise reduction and product reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Power Supply - Wall Plug-In Transformer
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Power Supply - Wall Plug-In Transformer
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

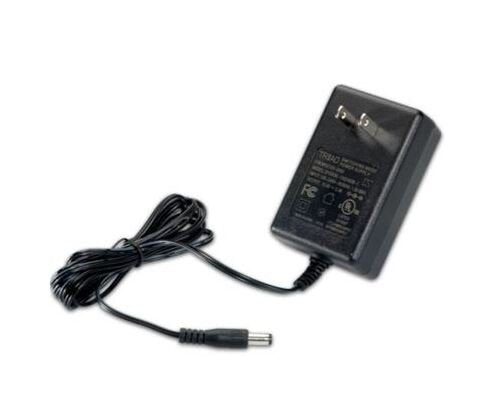

Enhance your product designs with our Triad Switch Mode Power Supply Wall Plug-Ins. These prepackaged power supplies eliminate the need for internal cooling devices, reducing noise while providing a regulated output voltage. With a compact design keeping heat away from sensitive circuits, these supplies meet EISA 2007 energy efficiency requirements. Available in a variety of voltages and power levels, they ensure safety with enclosed tamper-proof casing and 6-foot cord lengths.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

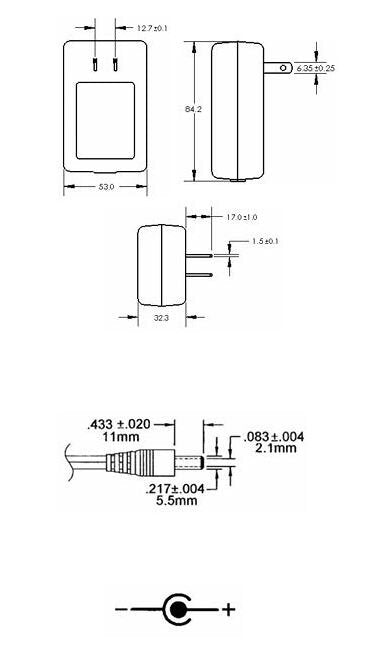

Case Dimensions Depth D
1.27 in | 32.30 mm
Case Dimensions Height H
3.31 in | 84.20 mm
Case Dimensions Width W
2.09 in | 53.00 mm
Electrical Specifications At 25 Degree Celsius C Temperature Max
200 mV
Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
36.00 W
Specifications Output Current
2.0 A
Specifications Output Current Dc
2.0 A
Specifications Output Voltage Dc
18.0 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
