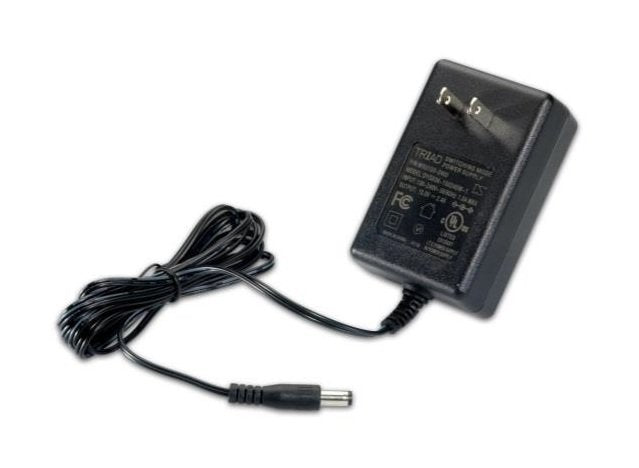

Switch Mode Power Supply - Wall Plug-In Transformer
Switch Mode Power Supply - Wall Plug-In Transformer
SKU:WAL-fc207f
Efficient and compact Switch Mode Power Supply for stable and safe performance
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Power Supply - Wall Plug-In Transformer
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Power Supply - Wall Plug-In Transformer
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your product designs with this efficient and compact Switch Mode Power Supply. Eliminate the need for internal cooling devices while reducing noise levels and size. With regulated voltage output and a wide range of voltage options, this power supply ensures stable performance. Safety features include tamper-proof casing and compliance with 2007 EISA energy efficiency requirements.
Product Specifications

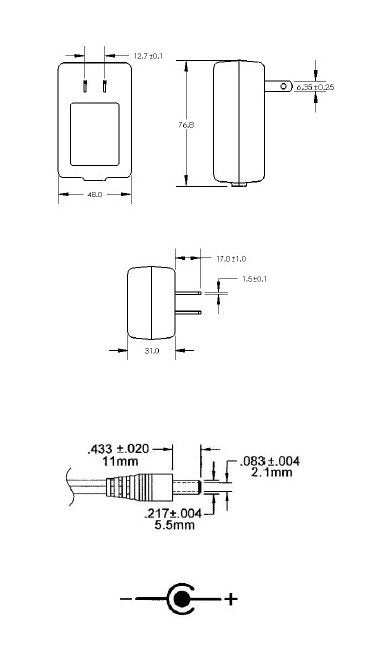

Case Dimensions Depth D
1.22 in | 31.00 mm
Case Dimensions Height H
3.02 in | 76.8 mm
Case Dimensions Width W
1.88 in | 48.00 mm
Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
24.00 W
Specifications Output Current
3.2 A
Specifications Output Current Dc
3.2 A
Specifications Output Voltage Dc
7.5 V
Specifications Polarity Center
Positive
Specifications Type
Switchmode
