Switch Mode Power Supply with Interchangeable Plug and Level VI Efficiency

Name: Switch Mode Power Supply with Interchangeable Plug and Level VI Efficiency
Brand: Triad Magnetics
SKU: WAL-52c4f7
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-52c4f7

Versatile 24V DC Power Supply with Interchangeable Plug and Level VI Efficiency, ideal for consumer and institutional use.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

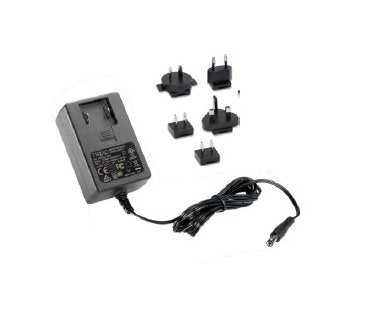

The Switch Mode Power Supply with Interchangeable Plug is a versatile solution for both consumer and institutional buyers. With an input voltage range of 100-240V, this power supply offers a steady 24V DC output at 1.0A current. Its Positive Polarity Center design ensures compatibility with a wide range of devices. The compact dimensions make it ideal for various applications, while its Level VI Efficiency rating guarantees energy savings and performance optimization.

Product Specifications

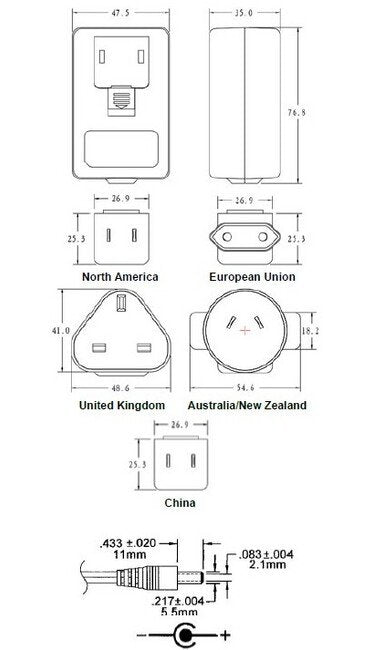

Case Dimensions Depth D

1.38 in | 35.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.87 in | 47.50 mm

Electrical Specifications At 25 Degree Celsius C Temperature Inp

50 to 60 Hz

Electrical Specifications At 25 Degree Celsius C Temperature Out

1.0 A

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Polarity Center

Positive

Specifications Type

Switchmode
