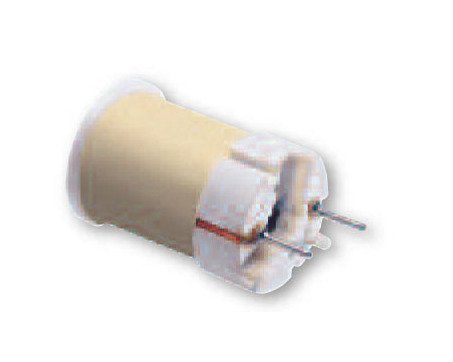

Switch Mode Rod Core Inductor
Switch Mode Rod Core Inductor
SKU:IND-9bb4b0
High-current rod core inductor, 560 µH, 0.800 A, suitable for stable current output in automated P.C.B. installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Switch Mode Rod Core Inductor
$24.99
Quantity: 1
Claim Your Seller Account
Switch Mode Rod Core Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Switch Mode Rod Core Inductor is a high-current solution ideal for energy storage in demanding applications. With a DC Rated Inductance of 560 µH and a Max. Current of 0.800 A (DC), this inductor efficiently smooths out current waveforms, ensuring a stable output. Designed for compatibility with automated P.C.B. installation, it offers reliability and cost-effectiveness for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
A RC-KIT is available which includes one of each of the above listed components.
Specifications Dc Rated Inductance
560 µH
Specifications Dc Resistance
0.600 Ohm

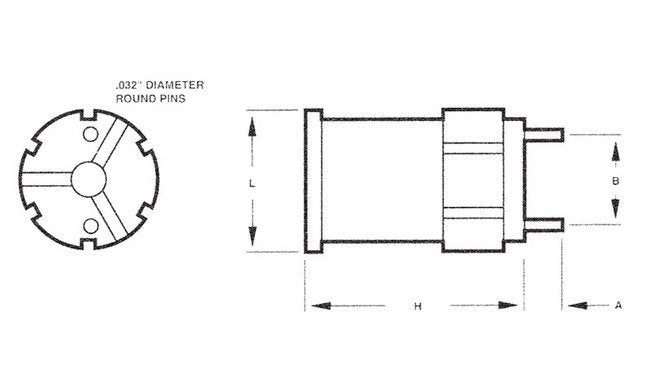

Specifications Dimension A
0.150 in
Specifications Dimension B
0.375 in
Specifications Dimension H
0.93 in
Specifications Dimension L
0.600 in
Specifications Max Current
0.800 A (DC)
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 10 amps per pin maximum.Rated current renders approximately 40 ºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
