Switch Mode Wall Plug-In Power Supply

Name: Switch Mode Wall Plug-In Power Supply
Brand: Triad Magnetics
SKU: WAL-fc8b9d
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-fc8b9d

Enhance product design efficiency with our compact and safe wall plug-in power supplies. Compliant with EIAS 2007 energy efficiency standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

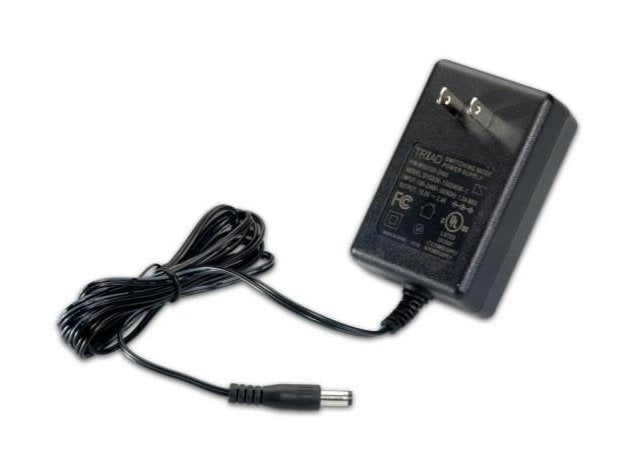

Upgrade your product design efficiency with our Triad prepackaged wall plug-in power supplies. These switch mode power sources reduce noise levels, size, and weight, eliminating the need for internal cooling devices. With regulated output voltage and wide voltage/power options, our compact and enclosed power supplies ensure safety and heat management for sensitive circuits. Compliant with EIAS 2007 energy efficiency requirements, and offering Level IV and V efficiency, our wall plug-ins are ideal for various applications.

Product Specifications

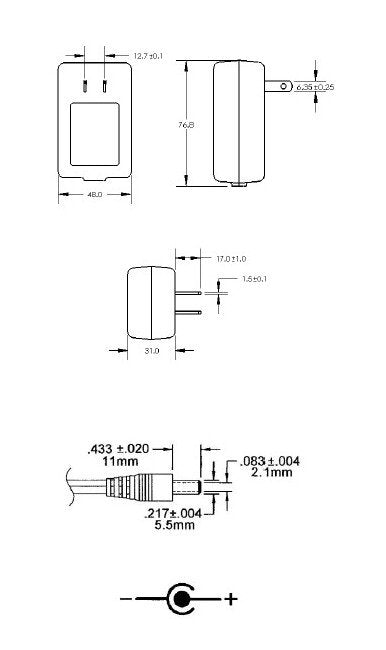

Case Dimensions Depth D

1.22 in | 31.00 mm

Case Dimensions Height H

3.02 in | 76.8 mm

Case Dimensions Width W

1.88 in | 48.00 mm

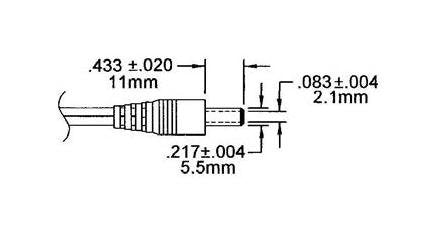

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Input Operating Frequency

50 Hz | 60 Hz

Specifications Input Voltage Ac

100 to 240 V

Specifications Maximum Power

24.00 W

Specifications Output Current

3.2 A

Specifications Output Current Dc

3.2 A

Specifications Output Voltage Dc

7.5 V

Specifications Polarity Center

Positive

Specifications Type

Switchmode
