Switch Mode Wall Plug-In Power Supply - 12V DC 1A
Switch Mode Wall Plug-In Power Supply - 12V DC 1A
SKU:WAL-437240
Efficient and compact 12V DC 1A wall plug-in power supply with regulated output voltage and Level IV-V efficiency. Meets EIAS 2007 energy efficiency standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Wall Plug-In Power Supply - 12V DC 1A
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Wall Plug-In Power Supply - 12V DC 1A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Switch Mode Wall Plug-In Power Supply offers a convenient and efficient power source for various electronic devices. Designed to streamline product design by eliminating the need for internal cooling components, this power supply reduces noise levels while maintaining a compact form factor. With regulated output voltage and Level IV-V efficiency, it meets EIAS 2007 energy efficiency requirements. The enclosed design ensures safety and tamper prevention, making it ideal for institutional and government applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm

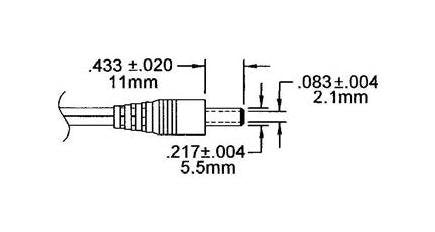

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
12.00 W
Specifications Output Current
1.00 A
Specifications Output Current Dc
1.0 A
Specifications Output Voltage Dc
12.0 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
