Switch Mode Wall Plug-In Power Supply
Switch Mode Wall Plug-In Power Supply
SKU:WAL-813726
Enhance product designs effortlessly with our efficient, noise-reducing switch mode wall plug-in power supplies. Regulated voltage output for stable performance and enhanced safety features.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Wall Plug-In Power Supply
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Wall Plug-In Power Supply
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

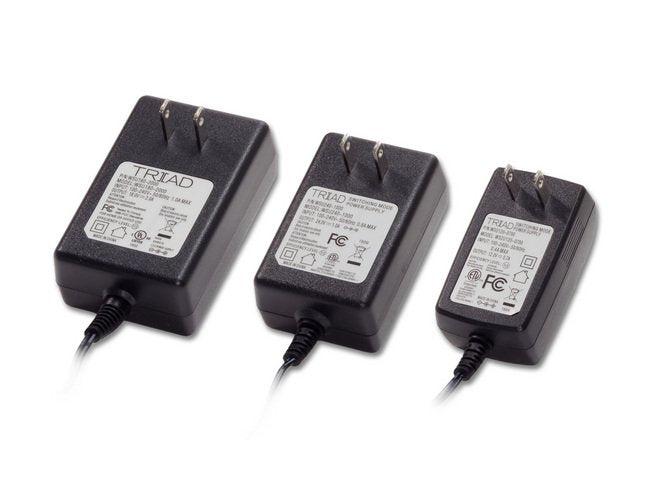

Upgrade product designs efficiently with our Triad Switch Mode Wall Plug-In Power Supply. Say goodbye to internal cooling needs with these noise-reducing, compact power sources. Our regulated voltage outputs ensure stable performance, while enclosed designs prevent tampering for enhanced safety. Compliant with EIAS 2007 energy efficiency requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Case Dimensions Depth D
1.22 in | 31.00 mm
Case Dimensions Height H
3.02 in | 76.80 mm
Case Dimensions Width W
1.89 in | 48.00 mm

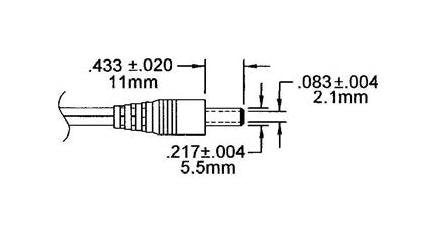

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
24.00 W
Specifications Output Current
1.60 A
Specifications Output Current Dc
1.6 A
Specifications Output Voltage Dc
15.0 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
