Switch Mode Wall Plug-In Power Supply - 13.5V DC 35.91W
Switch Mode Wall Plug-In Power Supply - 13.5V DC 35.91W
SKU:WAL-de2733
Efficient and compact switch mode wall plug-in power supply for safe and regulated power output.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Switch Mode Wall Plug-In Power Supply - 13.5V DC 35.91W
$49.99
Quantity: 1
Claim Your Seller Account
Switch Mode Wall Plug-In Power Supply - 13.5V DC 35.91W
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

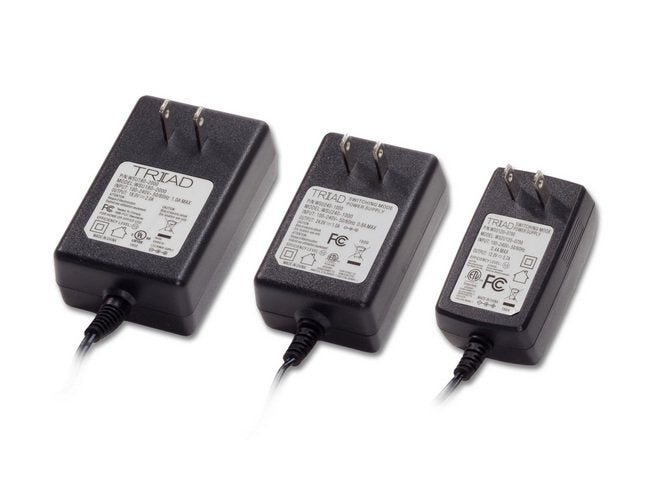

Enhance your product design efficiency with our Triad prepackaged wall plug-in power supplies. These switch mode supplies eliminate the need for internal cooling, reducing noise and size. Achieve safer, regulated power output with compact, tamper-proof designs. Offering a wide range of voltages, power levels, and reversed polarity. With Level IV/V efficiency and compliance with EIAS 2007 energy standards, these supplies are ideal for sensitive circuits.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Case Dimensions Depth D
1.27 in | 32.30 mm
Case Dimensions Height H
3.31 in | 84.20 mm
Case Dimensions Width W
2.09 in | 53.00 mm

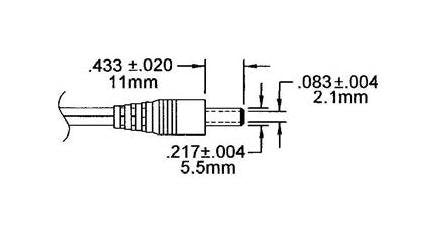

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
35.91 W
Specifications Output Current
2.66 A
Specifications Output Current Dc
2.66 A
Specifications Output Voltage Dc
13.5 V
Specifications Polarity Center
Positive
Specifications Type
Switchmode
