Switch Mode Wall Plug-In Power Supply

Name: Switch Mode Wall Plug-In Power Supply
Brand: Triad Magnetics
SKU: WAL-bfee27
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-bfee27

Efficient and safe Switch Mode Wall Plug-In Power Supply meeting EIAS 2007 standards with regulated output voltage for noise reduction and stability.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

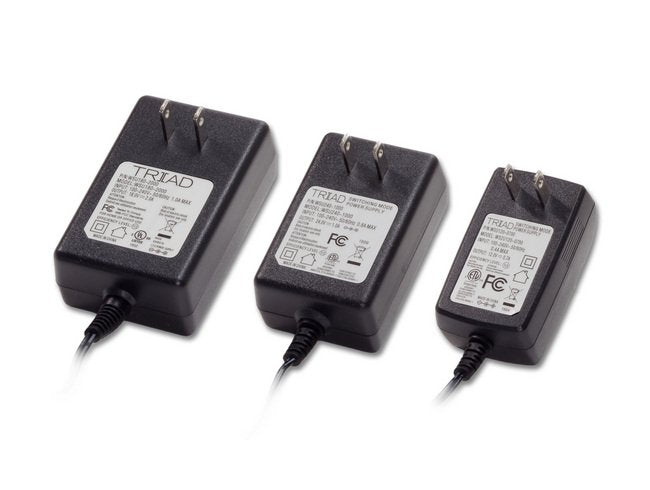

The Switch Mode Wall Plug-In Power Supply from our premium line offers efficient power delivery with reduced noise levels, size, and weight. Engineered to keep heat away from sensitive circuits, this power supply ensures a safe and stable lower output for your devices. Enclosed to prevent tampering, it comes in various voltages and power levels with regulated output voltage. With a generous cord length and high energy efficiency, this power supply meets EIAS 2007 standards, providing reliability and performance for your applications.

Product Specifications

Case Dimensions Depth D

1.37 in | 34.80 mm

Case Dimensions Height H

2.67 in | 67.70 mm

Case Dimensions Width W

1.81 in | 45.90 mm

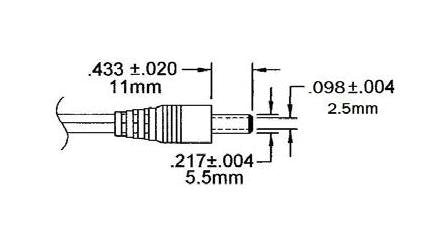

Output Plug Dimensions Inside Diameter Id

0.098Â±0.004 in | 2.5 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Input Operating Frequency

50 Hz | 60 Hz

Specifications Input Voltage Ac

100 to 240 V

Specifications Maximum Power

11.70 W

Specifications Output Current

1.30 A

Specifications Output Current Dc

1.3 A

Specifications Output Voltage Dc

9.0 V

Specifications Polarity Center

Positive

Specifications Type

Switchmode

Switch Mode Wall Plug-In Power Supply
