Switch Mode Wall Plug-In Power Supply

Name: Switch Mode Wall Plug-In Power Supply
Brand: Triad Magnetics
SKU: WAL-be6b30
Price: 39.99 USD
Availability: OutOfStock

SKU:WAL-be6b30

Enhance product design efficiency with this regulated and compact wall plug-in power supply.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

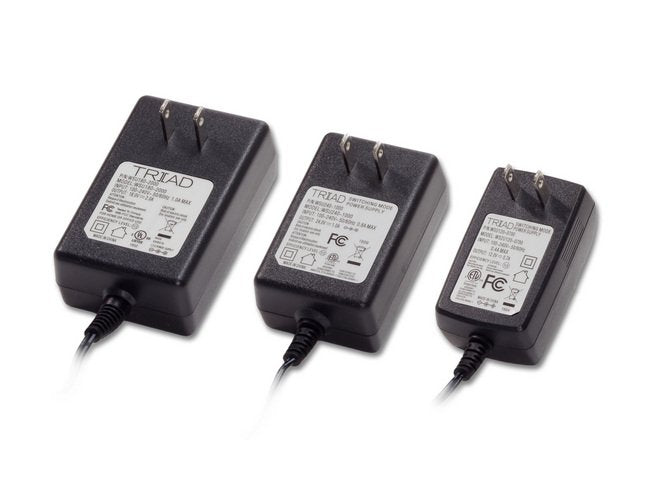

Optimize your product design process with this Triad prepackaged switch mode wall plug-in power supply. Say goodbye to internal cooling devices as these power sources reduce noise, size, and weight. Delivering a safe lower output and regulated voltage, these compact units keep heat away from sensitive circuits. With a range of voltages, power levels, and polarity options, these enclosed supplies offer convenience and reliability. Operating at 50-60 Hz frequency with Level IV and V efficiency, this power supply meets EIAS 2007 energy efficiency requirements for external power supplies.

Product Specifications

Case Dimensions Depth D

1.22 in | 31.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.89 in | 48.00 mm

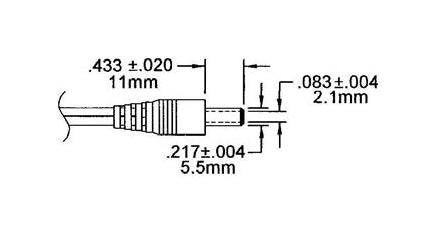

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Input Operating Frequency

50 Hz | 60 Hz

Specifications Input Voltage Ac

100 to 240 V

Specifications Maximum Power

24.00 W

Specifications Output Current

2.0 A

Specifications Output Current Dc

2.0 A

Specifications Output Voltage Dc

12.0 V

Specifications Polarity Center

Positive

Specifications Type

Switchmode
