Switch Mode Wall Plug-In Power Supply - 5.0V/2.0A
Switch Mode Wall Plug-In Power Supply - 5.0V/2.0A
SKU:WAL-0b5cdb
Efficient and reliable 5.0V/2.0A Switch Mode Power Supply for noise reduction and safety. Ideal for positive polarity applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Wall Plug-In Power Supply - 5.0V/2.0A
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Wall Plug-In Power Supply - 5.0V/2.0A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience efficiency and reliability with our Switch Mode Wall Plug-In Power Supply. This prepackaged solution offers noise reduction, compact design, regulated output voltage, and enhanced safety features. Ideal for applications requiring positive polarity, it operates at input voltages of 100-240V AC. With Level VI efficiency and compliance with EISA 2007 energy standards, this power supply is a reliable choice for reducing product design time.
Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm

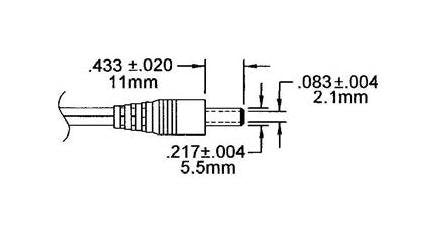

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
10.00 W
Specifications Output Current
2.0 A
Specifications Output Current Dc
2.0 A
Specifications Output Voltage Dc
5.0 V
Specifications Polarity Center
Positive
Specifications Type
Switchmode
