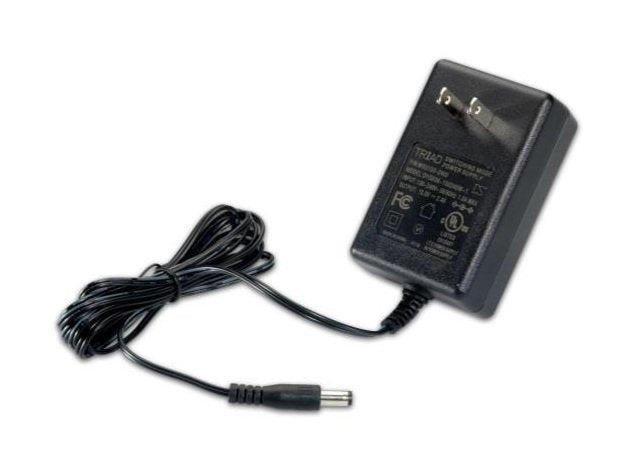

Switch Mode Wall Plug-In Power Supply
Switch Mode Wall Plug-In Power Supply
SKU:WAL-8d5e81
Enhance electronics with Triad wall plug-in switch mode power supplies for compact, efficient, and safe performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Switch Mode Wall Plug-In Power Supply
$39.99
Quantity: 1
Claim Your Seller Account
Switch Mode Wall Plug-In Power Supply
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your electronics effortlessly with our Triad prepackaged wall plug-in switch mode power supplies. Designed to streamline product assembly, these power sources eliminate the need for internal cooling devices, reducing noise, size, and weight. With regulated output voltage and enhanced safety features, these compact power supplies ensure optimal performance and protection for your sensitive circuits. Enclosed to prevent tampering and compliant with EIAS 2007 energy efficiency requirements, these power supplies are available in various voltages and power levels for versatile applications.
Product Specifications

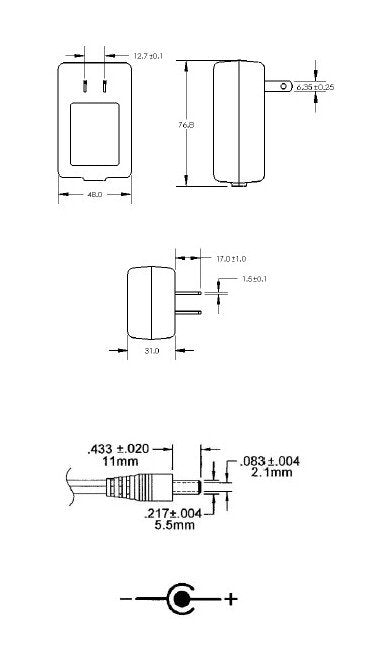

Case Dimensions Depth D
1.22 in | 31.00 mm
Case Dimensions Height H
3.02 in | 76.8 mm
Case Dimensions Width W
1.88 in | 48.00 mm
Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
24.00 W
Specifications Output Current
3.2 A
Specifications Output Current Dc
3.2 A
Specifications Output Voltage Dc
7.5 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
