Switch Mode Wall Plug-In Power Supply
Switch Mode Wall Plug-In Power Supply
SKU:WAL-d799f7
Efficient and reliable Switch Mode Wall Plug-In Power Supply with stable 7.5V output voltage, Level VI efficiency, and tamper-proof design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Switch Mode Wall Plug-In Power Supply
$29.99
Quantity: 1
Claim Your Seller Account
Switch Mode Wall Plug-In Power Supply
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

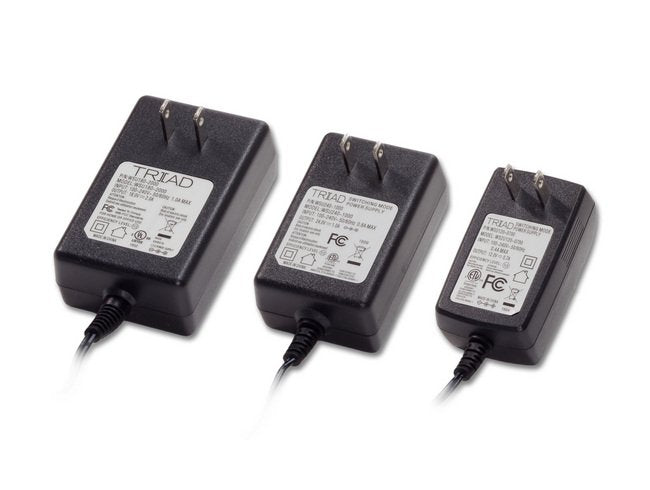

Designed for efficiency and reliability, our Switch Mode Wall Plug-In Power Supply streamlines product design by eliminating the need for internal cooling devices, reducing noise levels, size, and weight. With a regulated output voltage of 7.5V and output current of 1.5A, this power supply ensures stable performance. It meets EISA 2007 energy efficiency requirements, boasting Level VI efficiency for optimized energy consumption. The completely enclosed design prevents tampering, while the generous cord length and compact dimensions make it versatile for various applications.
Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm

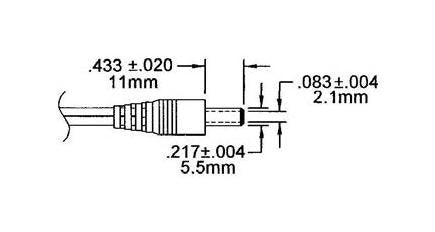

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
11.25 W
Specifications Output Current
1.50 A
Specifications Output Current Dc
1.50 A
Specifications Output Voltage Dc
7.5 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
