Swivel and Non-Swivel Hook Socket Fitting Set

Name: Swivel and Non-Swivel Hook Socket Fitting Set
Brand: Lexco Cable Manufacturing
SKU: ARC-ffd49b
Price: 29.99 USD
Availability: OutOfStock

SKU:ARC-ffd49b

Durable zinc-plated steel fittings for secure installation on 3/16" ropes. Swivel design for flexibility and Safety Latch Kit included for added security.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your architectural cable railings with this durable and reliable set of swivel and non-swivel hook socket fittings. Made of zinc-plated steel, these fittings provide secure installations on 3/16" ropes with a breaking strength of 3,340#. The swivel design allows for flexibility without compromising safety, while the included Safety Latch Kit ensures added security. Compliant with industry standards, these fittings are ideal for institutional and government applications that require precision and strength.

Product Specifications

Additional Information About Breaking Strength 0

Rope fittings are designed for linear applications only. Never subject Electroline rope fittings to angular loads. Follow rope manufacturersâ recommendations regarding the suitability of the rope on angled surfaces such as sheaves and pulleys.The strength of an assembly greatly depends on the type of rope used. When using Electroline terminations in an assembly, the rope is often the weakest component. Therefore, it is important to follow the rope manufacturers specifications regarding use, care, and suitability of the assembly. Electroline terminations should be inspected for deformation and unusual wear every time the rope is inspected.The rated assembly breaking strengths provided with Electroline wire rope part numbers in this catalog are typical for 6 x 19 IWRC (1 x 19 IWRC in smaller sizes) carbon steel ropes. Due to customer demand regarding dimensions, forged studs (GD 300 series), open body turnbuckles (XD series), fittings with hooks, and machined eyes (ID 200 series) are rated to Improved Plow Steel (IPS) standards. These fittings can be modified to Extra Improved Plow Steel (EIPS) standards if requested. All other carbon steel fittings conform to EIPS standards.Stainless steel typically yields at 85% of the assembly breaking strengths listed in this catalog and may not be suitable for high load applications or re-termination purposes.Machined fittings are at least 1.3 times stronger than the corresponding steel rope. Forged fittings, except studs, are 2.0 times stronger. Items specified as hot-dipped galvanized include a zinc, electro-plated sleeve.

Safety Latch Kits Safety Latch Kits

L-227, S - Safety Latch Kit

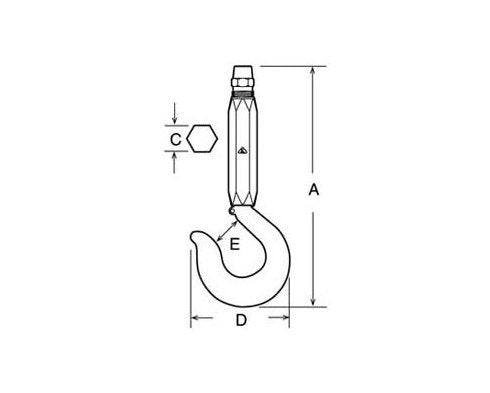

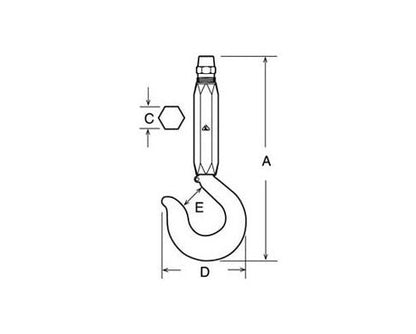

Specifications Dim C

3/4 "

Specifications Dim D

2-7/8 "

Specifications Dim E

1 "

Specifications Ips Breaking Strength

3,340#

Specifications Material Finish

Swivel Zinc Plated Steel

Specifications Non Swivel A

5-5/16 "

Specifications Rope Size

3/16 "

Specifications Swivel A

6-19/32 "

CAGE

0T9L4

NAICS

332999

PSC

5340

Swivel and Non-Swivel Hook Socket Fitting Set
