Swivel and Non-Swivel Hook Socket Fitting Set

Name: Swivel and Non-Swivel Hook Socket Fitting Set
Brand: Lexco Cable Manufacturing
SKU: ARC-410b65
Price: 69.99 USD
Availability: OutOfStock

SKU:ARC-410b65

Premium Swivel & Non-Swivel Hook Fittings for secure cable railing installations.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Non-Bearing Swivel and Non-Swivel Hook Socket Fitting Set is a premium solution for architectural cable railings, designed for easy installation on wire rope or aircraft cable. Constructed of durable Swivel Zinc Plated Steel, the set includes both swivel and non-swivel hooks for versatile applications. With a Rope Size of 7/16" and an impressive IPS Breaking Strength of 17,780#, these fittings ensure a secure and reliable cable railing system. Compliant with industry standards and safety guidelines, this fitting set guarantees superior performance and longevity in linear applications.

Product Specifications

Additional Information About Breaking Strength 0

Rope fittings are designed for linear applications only. Never subject Electroline rope fittings to angular loads. Follow rope manufacturersâ recommendations regarding the suitability of the rope on angled surfaces such as sheaves and pulleys.The strength of an assembly greatly depends on the type of rope used. When using Electroline terminations in an assembly, the rope is often the weakest component. Therefore, it is important to follow the rope manufacturers specifications regarding use, care, and suitability of the assembly. Electroline terminations should be inspected for deformation and unusual wear every time the rope is inspected.The rated assembly breaking strengths provided with Electroline wire rope part numbers in this catalog are typical for 6 x 19 IWRC (1 x 19 IWRC in smaller sizes) carbon steel ropes. Due to customer demand regarding dimensions, forged studs (GD 300 series), open body turnbuckles (XD series), fittings with hooks, and machined eyes (ID 200 series) are rated to Improved Plow Steel (IPS) standards. These fittings can be modified to Extra Improved Plow Steel (EIPS) standards if requested. All other carbon steel fittings conform to EIPS standards.Stainless steel typically yields at 85% of the assembly breaking strengths listed in this catalog and may not be suitable for high load applications or re-termination purposes.Machined fittings are at least 1.3 times stronger than the corresponding steel rope. Forged fittings, except studs, are 2.0 times stronger. Items specified as hot-dipped galvanized include a zinc, electro-plated sleeve.

Safety Latch Kits Safety Latch Kits

L-227B, S - Safety Latch Kit | L-490C, SS - Safety Latch Kit

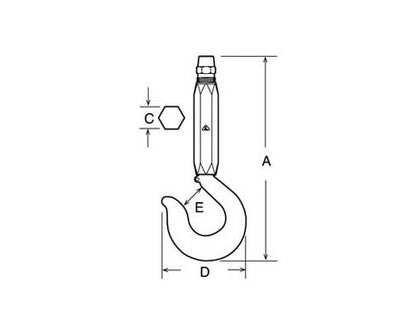

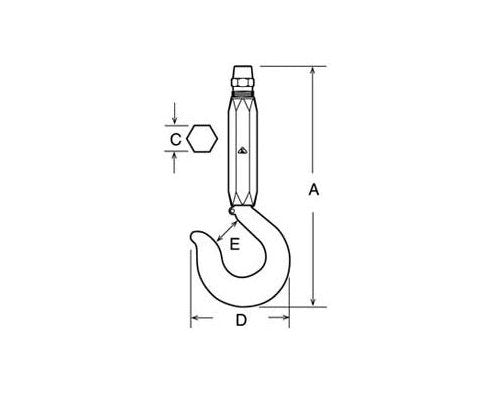

Specifications Dim C

1-1/4 "

Specifications Dim D

4-3/32 "

Specifications Dim E

1-1/4 "

Specifications Ips Breaking Strength

17,780#

Specifications Material Finish

Swivel Zinc Plated Steel

Specifications Non Swivel A

8-5/16 "

Specifications Rope Size

7/16 "

Specifications Swivel A

10-5/8 "

CAGE

0T9L4

NAICS

332999

PSC

5340
