Swivel Bolt Band Clamp Flat Straps

Swivel Bolt Band Clamp Flat Straps

SKU:ACC-efd0e4

High-quality Swivel Bolt Band Clamp Flat Straps for secure mounting of non-cylindrical objects. Durable stainless steel construction.

Regular price $19.99
Regular price Sale price $19.99
Sale

Initiate Order

Swivel Bolt Band Clamp Flat Straps

Swivel Bolt Band Clamp Flat Straps

$19.99

Quantity: 1

Claim Your Seller Account

Swivel Bolt Band Clamp Flat Straps

Swivel Bolt Band Clamp Flat Straps

$19.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

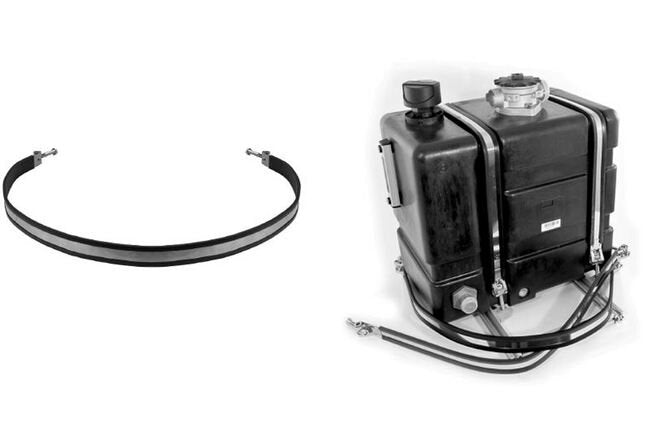

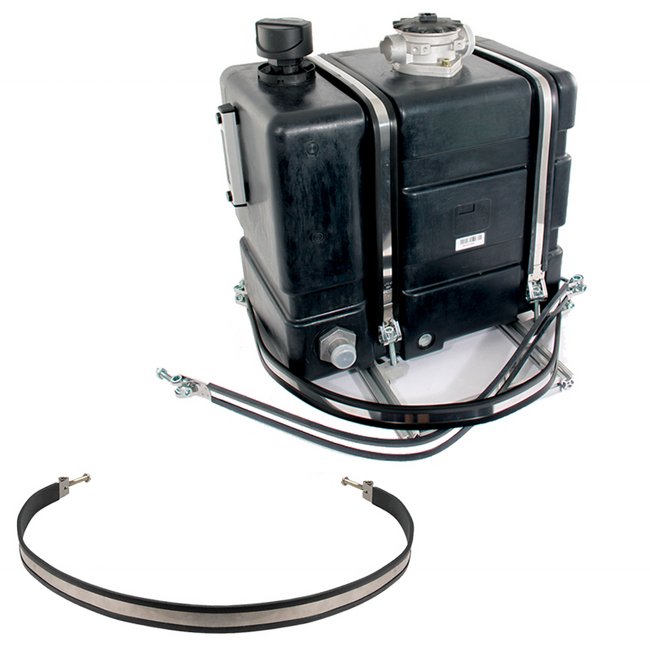

The Swivel Bolt Band Clamp Flat Straps by HYDAC are expertly designed for OEMs requiring secure mounting solutions for non-cylindrical objects like plastic fuel tanks. Made from high-quality stainless steel clamping band material, featuring a swivel bolt locking type and EPDM profile material, these straps ensure durability and reliability. With dimensions of 1mm thickness, 23.3 inches length, 25mm width, and a diameter range of 9.3 to 10 inches, these flat straps offer robust support for various applications. Designed to meet stringent industry standards and specifications, these flat straps guarantee superior performance and longevity.

Product Specifications

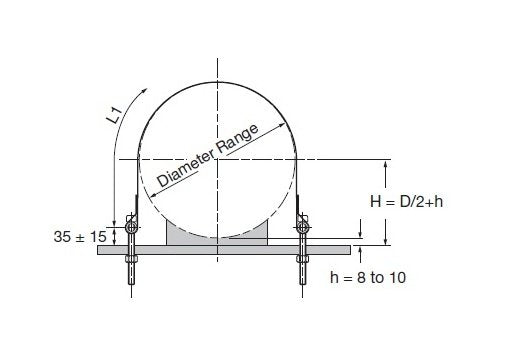

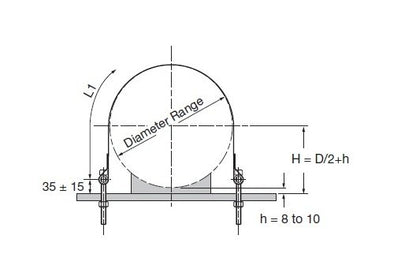

Dimensions Diameter Max
10 in | 254 mm
Dimensions Diameter Min
9.3 in | 236 mm
Dimensions Length L1
23.3 in | 591 mm
Dimensions Thickness
1 mm
Dimensions Width
25 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRGBLPU25A1 236-254/196ST
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
196
