Swivel Bolt Band Clamp for Secure Mounting Solutions
Swivel Bolt Band Clamp for Secure Mounting Solutions
SKU:ACC-3e410b
Secure non-cylindrical objects with precision using this durable Swivel Bolt Band Clamp by HYDAC. Ideal for OEMs and industrial applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Swivel Bolt Band Clamp for Secure Mounting Solutions
$69.99
Quantity: 1
Claim Your Seller Account
Swivel Bolt Band Clamp for Secure Mounting Solutions
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

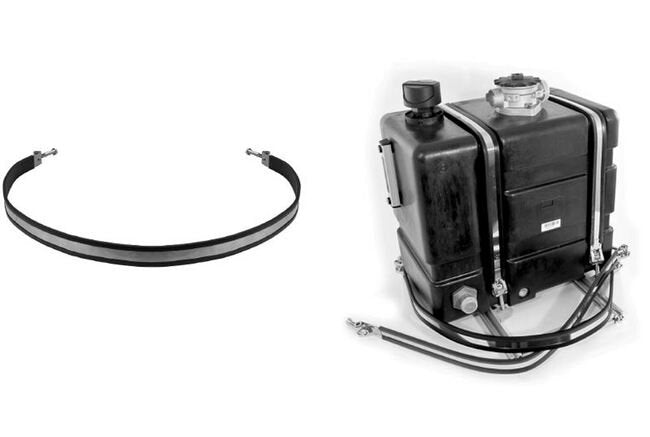

The Swivel Bolt Band Clamp by HYDAC is a reliable mounting solution designed for OEMs requiring secure fastening of non-cylindrical objects like plastic fuel tanks. Constructed with durable stainless steel clamping bands and carbon steel components, it features a swivel bolt locking mechanism for enhanced stability. The EPDM profile material ensures a snug fit, while the metric socket head bolts provide easy installation. With dimensions of 1.5mm thickness, 941mm length, and 30mm width, this clamp accommodates objects ranging from 371mm to 394mm in diameter. Ideal for industrial applications that demand precision and durability, this band clamp offers a robust solution that meets stringent mounting requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

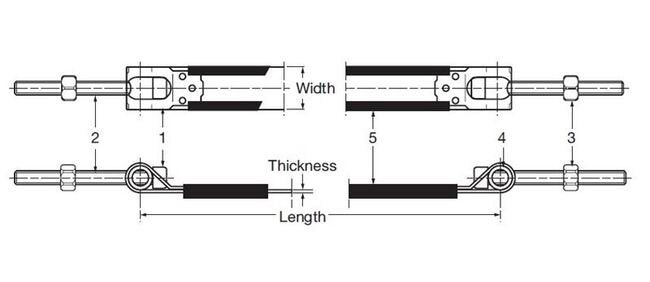

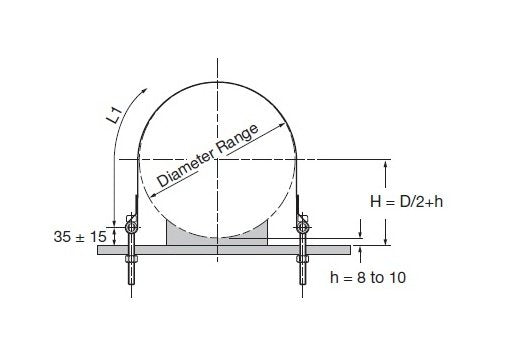

Dimensions Diameter Max
15.5 in | 394 mm
Dimensions Diameter Min
14.6 in | 371 mm
Dimensions Length L1
37 in | 941 mm
Dimensions Thickness
1.5 mm
Dimensions Width
30 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Hardware
Metric Socket Head Bolts
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRSGBLPU 30 B1 308 ST
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
308
