Swivel Bolt Band Clamp Mounting Kit
Swivel Bolt Band Clamp Mounting Kit
SKU:ACC-1ecb8d
Secure non-cylindrical objects with precision using the Swivel Bolt Band Clamp Mounting Kit by HYDAC. Stainless steel clamping band, EPDM profile, and swivel bolt locking provide reliability and durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Swivel Bolt Band Clamp Mounting Kit
$49.99
Quantity: 1
Claim Your Seller Account
Swivel Bolt Band Clamp Mounting Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

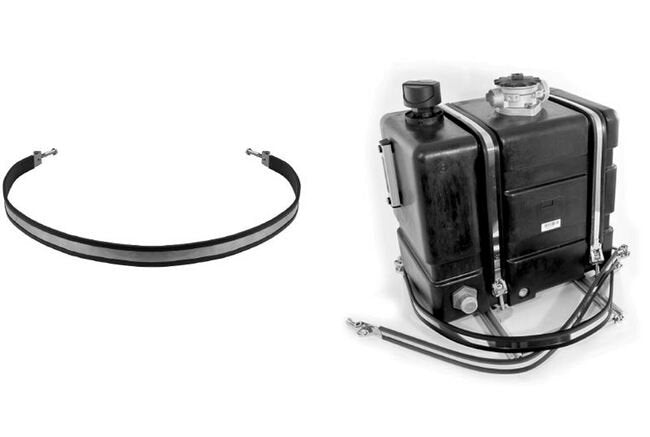

The Swivel Bolt Band Clamp Mounting Kit by HYDAC is a top choice for OEMs seeking secure mounting solutions for non-cylindrical objects like plastic fuel tanks. With a durable stainless steel clamping band and EPDM profile material, this kit offers reliability and longevity. The locking type features swivel bolt mechanisms, and the included carbon steel metal components and metric socket head bolts ensure sturdy installation. Meeting stringent specifications like 1.5mm thickness, 30mm width, and 5.4-5.9 inch diameter range, this kit guarantees precision and performance, making it ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Diameter Max
5.9 in | 150 mm
Dimensions Diameter Min
5.4 in | 138 mm
Dimensions Length L1
13.5 in | 342 mm

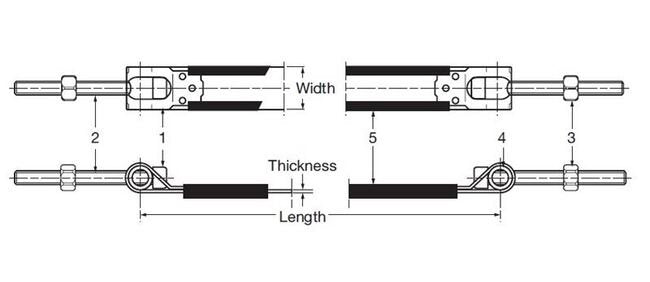

Dimensions Thickness
1.5 mm
Dimensions Width
30 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Division
ACCESSORIES
Specifications Hardware
Metric Socket Head Bolts
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRSGBLPU 30 B1 116 ST
Specifications Product
CLAMPS
Specifications Product Group Family
MOUNTING COMPONENTS
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
116
