Swivel Bolt Band Clamp - Stainless Steel
Swivel Bolt Band Clamp - Stainless Steel
SKU:ACC-83c5a4
Secure non-cylindrical objects with precision using the Swivel Bolt Band Clamp's stainless steel construction and durable locking mechanism.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Swivel Bolt Band Clamp - Stainless Steel
$59.99
Quantity: 1
Claim Your Seller Account
Swivel Bolt Band Clamp - Stainless Steel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

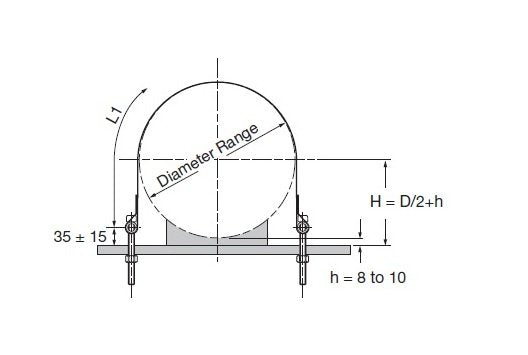

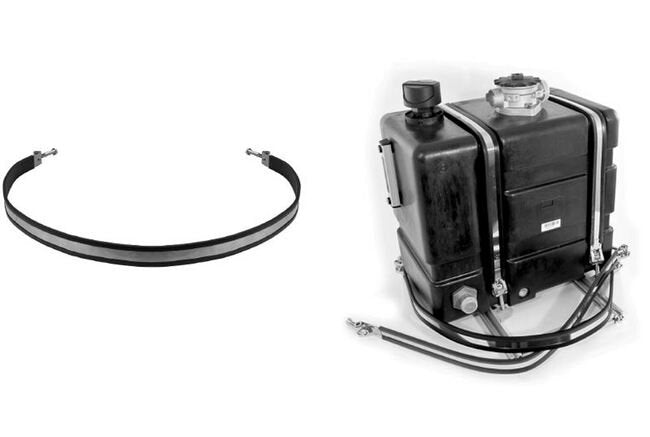

The Swivel Bolt Band Clamp by HYDAC is a robust mounting solution designed for OEMs seeking to securely fasten non-cylindrical objects like plastic fuel tanks. Constructed with high-quality stainless steel clamping band material and a swivel bolt locking mechanism, this clamp ensures reliable and durable hold. The EPDM profile material and carbon steel components guarantee resistance to corrosion and environmental factors. With precise dimensions, including a thickness of 1.5mm and a length of 21.2 inches, this clamp is ideal for applications requiring a diameter range from 8.4 to 9.1 inches. Compliant with industry standards, this band clamp is a trusted choice for various mounting needs.
Ready to Grow Without Cash Flow Constraints?

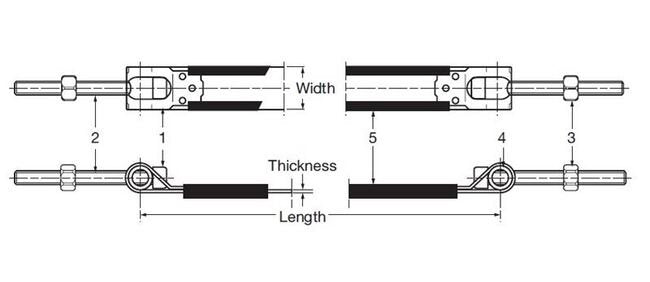

Product Specifications
Dimensions Diameter Max
9.1 in | 232 mm
Dimensions Diameter Min
8.4 in | 214 mm
Dimensions Length L1
21.2 in | 539 mm
Dimensions Thickness
1.5 mm
Dimensions Width
30 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Hardware
Metric Hex Head Bolts
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRSGBLPU 30 A1HB 178 ST
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
178
