Swivel Bolt Band Clamp - Stainless Steel Flat Straps
Swivel Bolt Band Clamp - Stainless Steel Flat Straps
SKU:ACC-47cd40
Explore our durable Swivel Bolt Band Clamp Stainless Steel Flat Straps for secure mounting of non-cylindrical objects. Featuring a swivel bolt lock and EPDM profile for lasting durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Swivel Bolt Band Clamp - Stainless Steel Flat Straps
$29.99
Quantity: 1
Claim Your Seller Account
Swivel Bolt Band Clamp - Stainless Steel Flat Straps
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

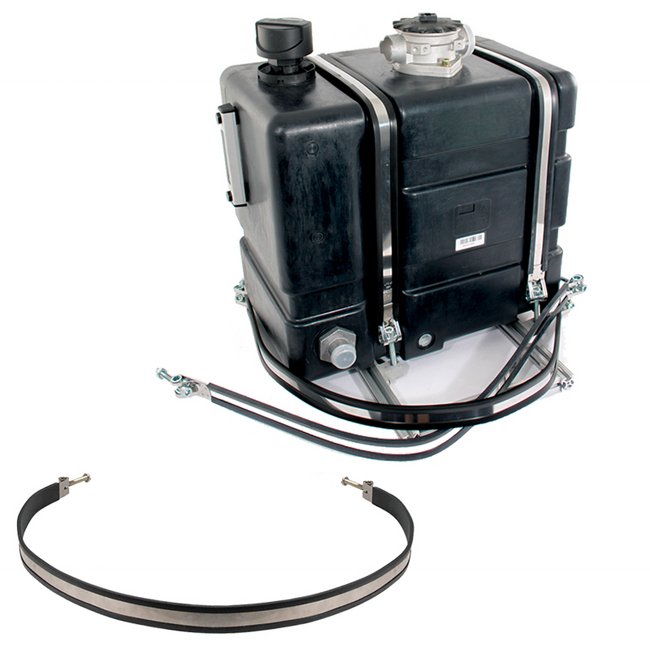

Our Swivel Bolt Band Clamp Stainless Steel Flat Straps are designed for OEMs seeking secure mounting solutions for non-cylindrical objects like plastic fuel tanks. Made with high-quality stainless steel, these Flat Straps feature a swivel bolt locking mechanism and EPDM profile material for durability. With precise dimensions and metric hex head bolts, these straps ensure a reliable and adjustable fit. Ideal for various industrial applications, these straps meet stringent quality standards for secure fastening and long-lasting performance.
Product Specifications

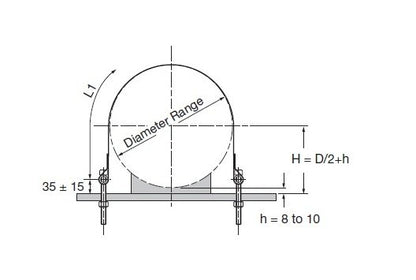

Dimensions Diameter Max
9.1 in | 232 mm
Dimensions Diameter Min
8.4 in | 214 mm
Dimensions Length L1
21.2 in | 539 mm
Dimensions Thickness
1 mm
Dimensions Width
25 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Hardware
Metric Hex Head Bolts
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRGBLPU 25 A1 178 ST
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
178
