Swivel Bolt Band Clamps
Swivel Bolt Band Clamps
SKU:ACC-f7dae9
Premium Swivel Bolt Band Clamps for secure mounting of non-cylindrical objects. Stainless steel construction with swivel bolt locking. Easy to install and versatile for different diameters.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Swivel Bolt Band Clamps
$39.99
Quantity: 1
Claim Your Seller Account
Swivel Bolt Band Clamps
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

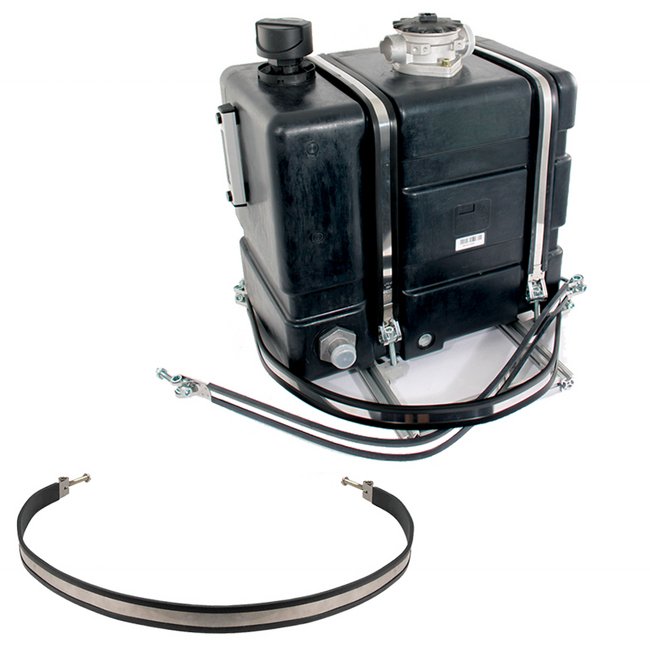

Ideal for securely fastening non-cylindrical objects like plastic fuel tanks, the Swivel Bolt Band Clamps from HYDAC provide a durable and reliable solution. Constructed with stainless steel clamping bands and carbon steel components, these clamps feature a swivel bolt locking mechanism for added security. The EPDM profile material ensures a tight grip while the metric socket head bolts make installation quick and easy. With dimensions ranging from 4.4 inches to 17.3 inches in diameter, these clamps offer versatility and strength for various mounting applications.
Product Specifications

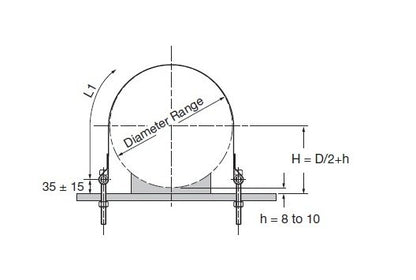

Dimensions Diameter Max
17.3 in | 440 mm
Dimensions Diameter Min
4.4 in | 112 mm
Dimensions Length L1
11 in | 279 mm
Dimensions Thickness
1 mm
Dimensions Width
25 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Division
ACCESSORIES
Specifications Hardware
Metric Socket Head Bolts

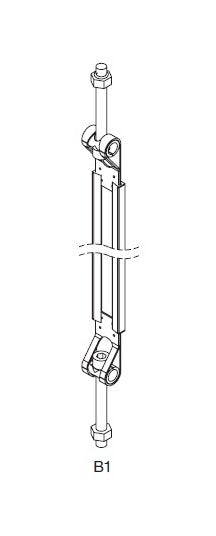

Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRGBLPU 25 B1 94 ST
Specifications Product
CLAMPS
Specifications Product Group Family
MOUNTING COMPONENTS
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
94
