Swivel Bolt Clamp for Cylindrical Components
Swivel Bolt Clamp for Cylindrical Components
SKU:ACC-7a8367
Securely mount cylindrical components with this durable Swivel Bolt Clamp. Easy to install, provides tight fit, and complies with industry standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Swivel Bolt Clamp for Cylindrical Components
$45.99
Quantity: 1
Claim Your Seller Account
Swivel Bolt Clamp for Cylindrical Components
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

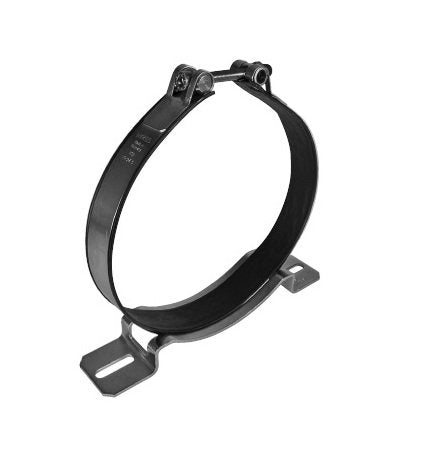

The Swivel Bolt Clamp for Cylindrical Components, model HRGKSM 1 R 83-88/88 ST, is a Quick Release clamp designed to securely mount cylindrical components with a diameter of up to 3.5 inches (88 mm). Constructed with durable steel clamping band material and a zinc-plated finish, this clamp offers a secure and reliable mounting solution. The swivel bolt locking type allows for simple installation and a tight fit, while the polyethylene profile material ensures long-lasting use without compression. With a swivel assembly that rotates approximately 270 degrees, easy access to bolts, and a support base for added stability during installation, this clamp is ideal for various mounting applications. Certified dimensions and quality make it compliant with industry standards and suitable for institutional procurement needs.
Product Specifications
Dimensions Diameter Max
3.5 in | 88 mm
Features 0
Swivel assembly provides for simple installation and a tight fitSupport base provides easy access to bolts / unit easy to installThe clamp rotates ~270ºF / Easy accessPolyethylene profile does not compressClamp stays tight over time
Note 0

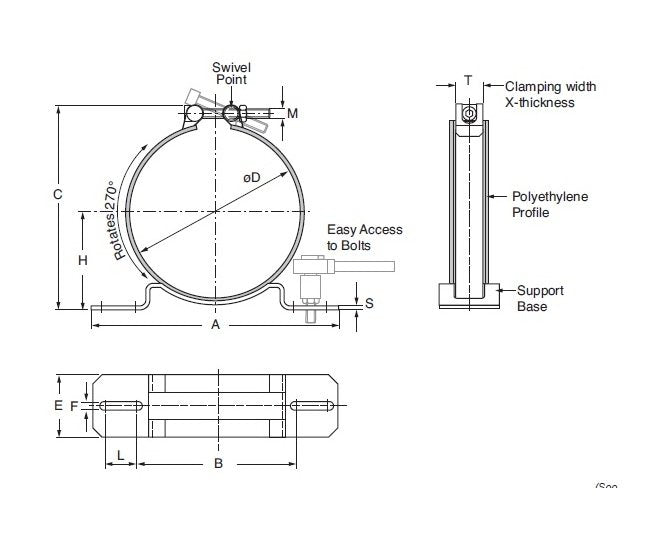

Dimensions are in inches (mm) and lbs (kg).Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.For larger sizes contact HYDAC Accessories Group
Specifications Bun
EA
Specifications Clamping Band Material
Steel
Specifications Finish
Zinc Plated
Specifications Locking Type
Swivel Bolt
Specifications Model Code Description
HRGKSM 1 R 83-88/88 ST
Specifications Profile Material
Polyethylene
Specifications Type
Quick Release Swivel Bolt Clamp
Specifications Type Number
88
