Swivel Bolt Cylindrical Clamp
Swivel Bolt Cylindrical Clamp
SKU:ACC-327323
High-quality swivel bolt cylindrical clamp for secure and easy mounting of cylindrical components with a durable steel construction and polyethylene profile to prevent compression.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Swivel Bolt Cylindrical Clamp
$49.99
Quantity: 1
Claim Your Seller Account
Swivel Bolt Cylindrical Clamp
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

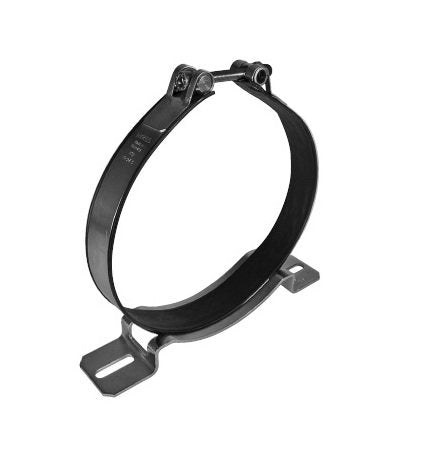

The Swivel Bolt Cylindrical Clamp HRGKSM 1 R 164-172/169 ST is a high-quality quick release clamp ideal for mounting cylindrical components securely. Made with durable steel clamping band material and zinc-plated finish, this clamp features a swivel bolt locking mechanism for easy and secure installation. With precise dimensions and a polyethylene profile that prevents compression, this clamp offers a tight and reliable fit over time. The swivel assembly allows for easy rotation, providing accessibility and versatility in various applications.
Product Specifications

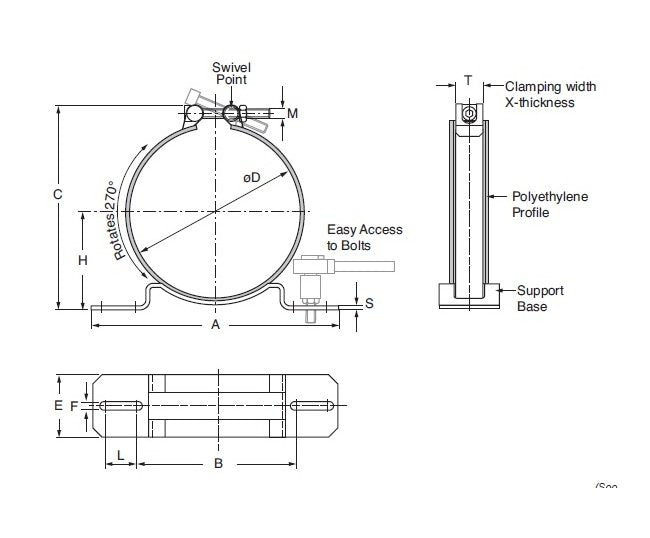

Dimensions Diameter Max
6.7 in | 171 mm
Dimensions Diameter Min
6.4 in | 163 mm
Dimensions Dimension A
9.3 in | 236 mm
Dimensions Dimension B
3.35 in | 85 mm
Dimensions Dimension Cmax
7.9 in | 200 mm
Dimensions Dimension E
1.57 in | 40 mm
Dimensions Dimension F
0.35 in | 9 mm
Dimensions Dimension H
3.5 to 3.7 in | 90.1 to 94.1 mm
Dimensions Dimension L
0.31 in | 8 mm
Dimensions Dimension M
M6 x 50
Dimensions Dimension S
0.12 in | 3 mm
Dimensions Dimension T
0.8 x 0.03 in | 20 x 0.8 mm
Features 0
Swivel assembly provides for simple installation and a tight fitSupport base provides easy access to bolts / unit easy to installThe clamp rotates ~270ºF / Easy accessPolyethylene profile does not compressClamp stays tight over time
Note 0
Dimensions are in inches (mm) and lbs (kg).Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.For larger sizes contact HYDAC Accessories Group
Specifications Bun
EA
Specifications Clamping Band Material
Steel
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Locking Type
Swivel Bolt
Specifications Model Code Description
HRGKSM 1 R 164-172/169 ST
Specifications Product
CLAMPS
Specifications Product Group Family
MOUNTING COMPONENTS
Specifications Profile Material
Polyethylene
Specifications Type
Quick Release Swivel Bolt Clamp
Specifications Type Number
169
Specifications Weight
0.15 kg | 0.33 lb
