Swivel Bolt Cylindrical Mounting Clamp
Swivel Bolt Cylindrical Mounting Clamp
SKU:ACC-79e7bc
High-quality Swivel Bolt Cylindrical Mounting Clamp for secure, easy installation of cylindrical components.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Swivel Bolt Cylindrical Mounting Clamp
$34.99
Quantity: 1
Claim Your Seller Account
Swivel Bolt Cylindrical Mounting Clamp
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

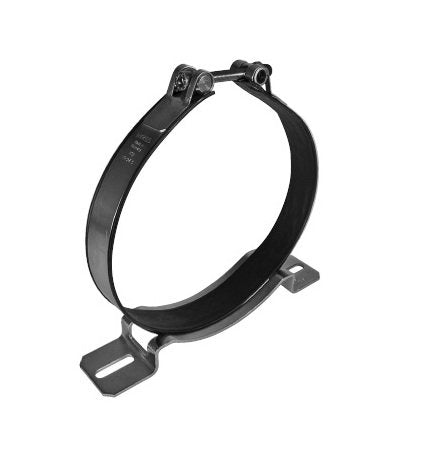

The Swivel Bolt Cylindrical Mounting Clamp (model HRGKSM 3 R 274-285/282 ST) is a high-quality quick-release clamp designed for mounting cylindrical components. Made of durable steel with a zinc-plated finish, this clamp features a swivel bolt locking mechanism, ensuring a secure fit. The polyethylene profile prevents compression, and the clamp's swivel assembly allows for easy installation and rotation of approximately 270 degrees. With dimensions ranging from 10.7 to 11.2 inches in diameter, this clamp is suitable for various applications, offering practicality and reliability. Designed for non-accumulator applications, this clamp is a versatile solution for mounting cylindrical components with ease.

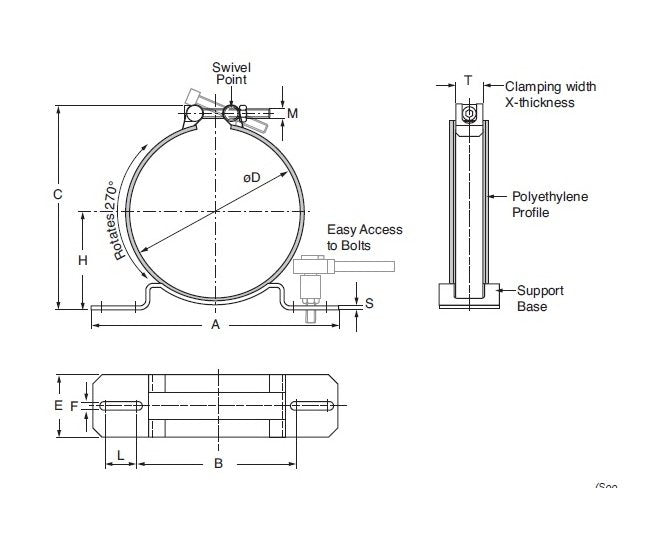

Product Specifications
Dimensions Diameter Max
11.2 in | 284 mm
Dimensions Diameter Min
10.7 in | 272 mm
Dimensions Dimension A
11.81 in | 300 mm
Dimensions Dimension B
5.98 in | 152 mm
Dimensions Dimension Cmax
12.5 in | 317 mm
Dimensions Dimension E
2.36 in | 60 mm
Dimensions Dimension F
0.35 in | 9 mm
Dimensions Dimension H
5.8 to 6 in | 147.4 to 152.9 mm
Dimensions Dimension L
1.26 in | 32 mm
Dimensions Dimension M
M6 x 50
Dimensions Dimension S
0.16 in | 4 mm
Dimensions Dimension T
0.8 x 0.03 in | 20 x 0.8 mm
Features 0
Swivel assembly provides for simple installation and a tight fitSupport base provides easy access to bolts / unit easy to installThe clamp rotates ~270ºF / Easy accessPolyethylene profile does not compressClamp stays tight over time
Note 0
Dimensions are in inches (mm) and lbs (kg).Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.For larger sizes contact HYDAC Accessories Group
Specifications Bun
EA
Specifications Clamping Band Material
Steel
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Locking Type
Swivel Bolt
Specifications Model Code Description
HRGKSM 3 R 274-285/282 ST
Specifications Product
CLAMPS
Specifications Product Group Family
MOUNTING COMPONENTS
Specifications Profile Material
Polyethylene
Specifications Type
Quick Release Swivel Bolt Clamp
Specifications Type Number
282
Specifications Weight
0.15 kg | 0.33 lb
