Swivel Bolt Flat Straps
Swivel Bolt Flat Straps
SKU:ACC-d18105
Secure non-cylindrical objects with precision using Swivel Bolt Flat Straps by HYDAC. Stainless steel construction, swivel bolt locking, and EPDM profile for durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Swivel Bolt Flat Straps
$29.99
Quantity: 1
Claim Your Seller Account
Swivel Bolt Flat Straps
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

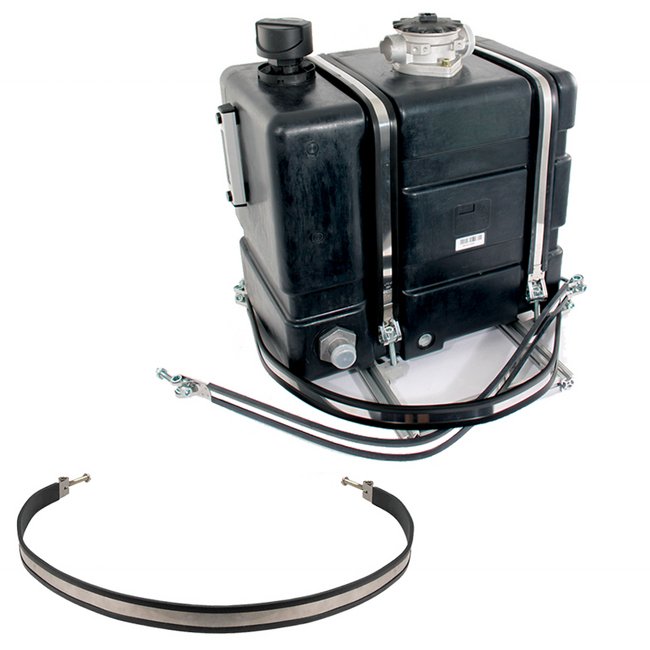

The Swivel Bolt Flat Straps by HYDAC provide robust mounting solutions for securing non-cylindrical objects like plastic fuel tanks. Constructed with high-quality stainless steel band material and 304 stainless steel components, these straps feature a swivel bolt locking mechanism for secure fastening. The EPDM profile material ensures durability and resistance to environmental factors. With a sleek design and precise dimensions, these straps are ideal for OEM applications that demand reliable and versatile mounting options.
Product Specifications
Dimensions Diameter Max
4.1 in | 104 mm
Dimensions Diameter Min
3 in | 76 mm
Dimensions Length L1
7.40 in | 187 mm
Dimensions Thickness
1 mm
Dimensions Width
25 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Division
ACCESSORIES
Specifications Hardware
Metric Socket Head Bolts
Specifications Locking Type

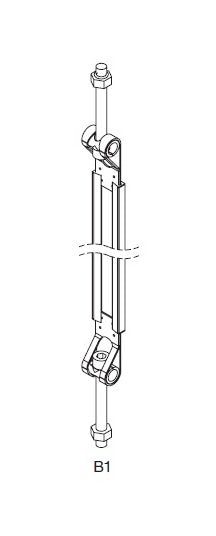

Swivel Bolt
Specifications Metal Components Materials
304 Stainless Steel
Specifications Model Code Description
HRGBLPU 25 B1 64 A2
Specifications Product
CLAMPS
Specifications Product Group Family
MOUNTING COMPONENTS
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
64
