Swivel Bolt Flat Straps
Swivel Bolt Flat Straps
SKU:ACC-de1e71

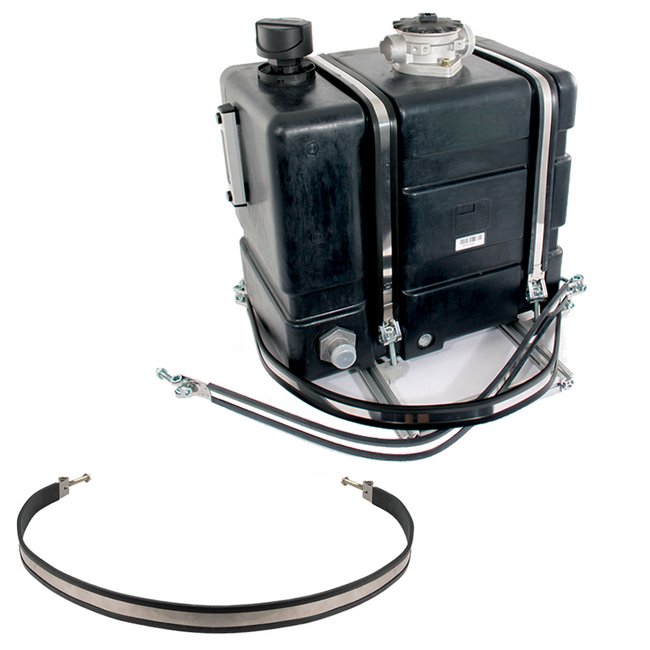

Precision-engineered Swivel Bolt Flat Straps for secure mounting of non-cylindrical objects like plastic fuel tanks.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Swivel Bolt Flat Straps
$29.99
Quantity: 1
Claim Your Seller Account
Swivel Bolt Flat Straps
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

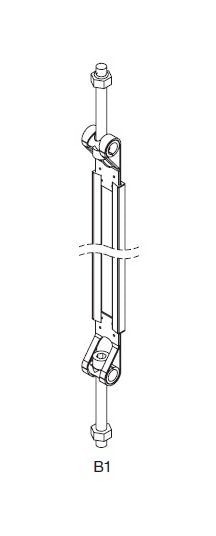

The Swivel Bolt Flat Straps by HYDAC are precision-engineered for OEMs seeking secure mounting solutions for non-cylindrical objects like plastic fuel tanks. These stainless steel band straps feature a Swivel Bolt design for easy installation and maintenance. With a durable EPDM profile and carbon steel components, they offer unparalleled reliability. Measuring 1mm thick, 25mm wide, and accommodating up to 17.3 inches (440mm) in diameter, these flat straps ensure a secure hold in various applications.
Product Specifications

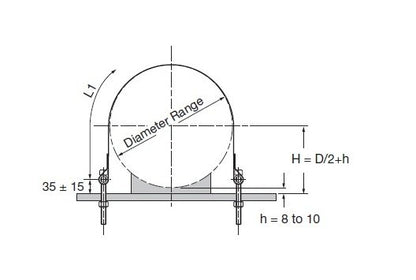

Dimensions Diameter Max
17.3 in | 440 mm
Dimensions Thickness
1 mm
Dimensions Width
25 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Hardware
Metric Socket Head Bolts
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRGBLPU 25 B1 343 ST
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
343
