Swivel Bolt Stainless Steel Band Clamp for Securing Non-Cylindrical Objects

Swivel Bolt Stainless Steel Band Clamp for Securing Non-Cylindrical Objects

ACC-3488d0

Secure non-cylindrical objects with precision using the Swivel Bolt Stainless Steel Band Clamp by HYDAC. Reliable and durable mounting solution ideal for industrial applications.

$39.99
$39.99
Sale

Initiate Order

Swivel Bolt Stainless Steel Band Clamp for Securing Non-Cylindrical Objects

Swivel Bolt Stainless Steel Band Clamp for Securing Non-Cylindrical Objects

$39.99

Quantity: 1

Claim Your Seller Account

Swivel Bolt Stainless Steel Band Clamp for Securing Non-Cylindrical Objects

Swivel Bolt Stainless Steel Band Clamp for Securing Non-Cylindrical Objects

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

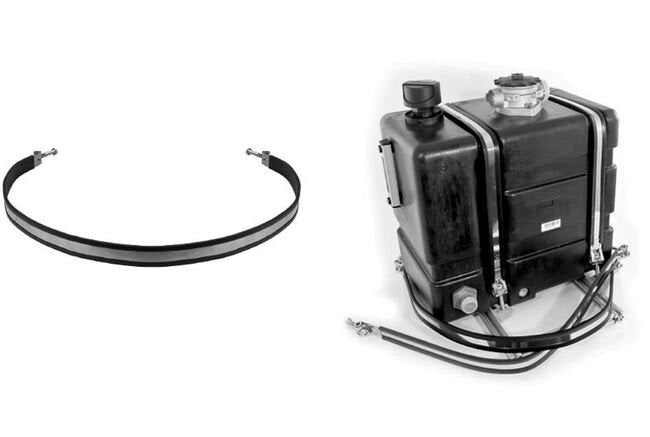

The Swivel Bolt Stainless Steel Band Clamp by HYDAC is a specialized mounting solution designed for OEMs seeking to securely fasten non-cylindrical objects like plastic fuel tanks. Constructed with high-quality stainless steel and featuring a swivel bolt locking mechanism, this clamp ensures reliable and durable support. The EPDM profile material enhances grip and protects the surface, while the carbon steel hardware with metric socket head bolts guarantees sturdy attachment. With precise dimensions catering to various diameters, this clamp is ideal for industrial applications requiring robust mounting solutions.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

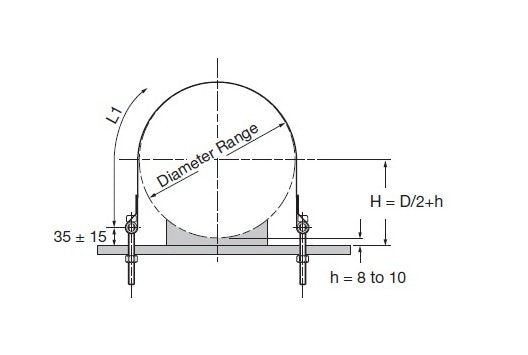

Dimensions Diameter Max
20.5 in | 521 mm
Dimensions Diameter Min
19.5 in | 496 mm

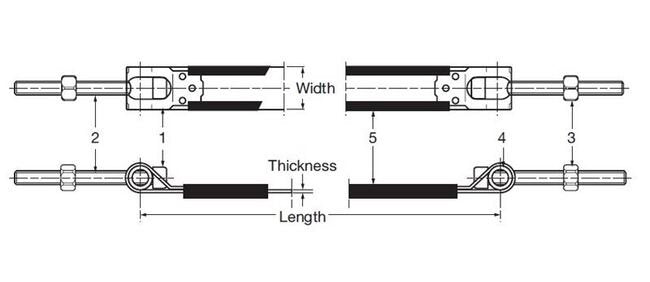

Dimensions Length L1
49.8 in | 1266 mm
Dimensions Thickness
1.5 mm
Dimensions Width
30 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Division
ACCESSORIES
Specifications Hardware
Metric Socket Head Bolts
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRSGBLPU 30 B1 412 ST
Specifications Product
CLAMPS
Specifications Product Group Family
MOUNTING COMPONENTS
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
412
