Swivel Head Innerduct Pulling Eyes for Conduit Installation

Name: Swivel Head Innerduct Pulling Eyes for Conduit Installation
Brand: Colonial Teltek
SKU: CON-283ce8
Price: 29.99 USD
Availability: OutOfStock

SKU:CON-283ce8

Streamline conduit installation with Swivel Head Innerduct Pulling Eyes for precise, twist-free performance. Easy to install and suitable for tight bends.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

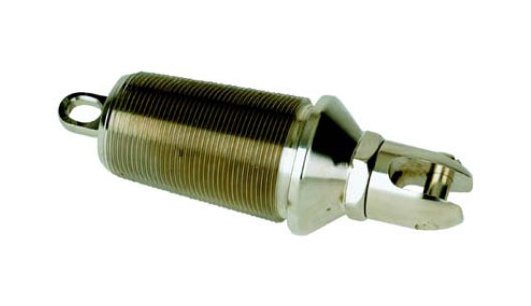

The Swivel Head Innerduct Pulling Eyes offer a seamless solution for conduit installation, blending the functionality of standard innerduct pulling eyes with swivel technology. Designed to prevent twisting and binding during installation, the swivel head eliminates the need for separate swivels on each pulling eye, streamlining the process. Their compact design proves advantageous for tight bends, outperforming traditional setups with separate swivels and pulling eyes. Easily installed using a 1-3/8" deep socket or adjustable wrench, these pulling eyes ensure efficiency and precision. To determine the correct size, refer to the innerduct inside diameter for compatibility.

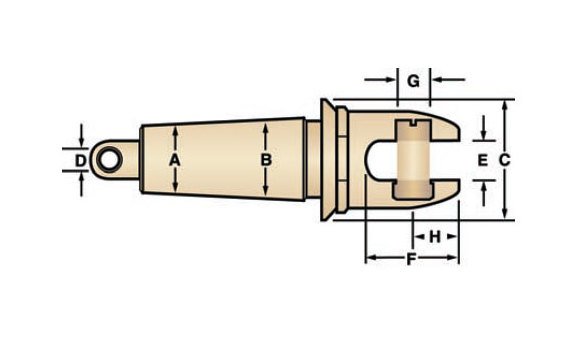

Product Specifications

Specifications Hole Diameter D In

0.44

Specifications Hole Diameter D Mm

Specifications Innerduct Id Range A To B In

1.37 to 1.68

Specifications Innerduct Id Range A To B Mm

35 to 43

Specifications Max Od C In

2.00

Specifications Max Od C Mm

Specifications Nom Size In

1-1/2

Specifications Nom Size Mm

Specifications Note

Will fit all Condux multiple pulling harnesses.

Specifications Pin Center H In

0.56

Specifications Pin Center H Mm

Specifications Pin Diameter G In

0.44

Specifications Pin Diameter G Mm

Specifications Slot Depth F In

1.31

Specifications Slot Depth F Mm

Specifications Slot Width E In

0.56

Specifications Slot Width E Mm
