Swivel Head Innerduct Pulling Eyes - Innerduct Installation Tool
Swivel Head Innerduct Pulling Eyes - Innerduct Installation Tool
SKU:PUL-40aea5
Revolutionize innerduct installation with our Swivel Head Pulling Eyes. Prevent twisting and binding, install with ease, and ensure a perfect fit every time.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Swivel Head Innerduct Pulling Eyes - Innerduct Installation Tool
$29.99
Quantity: 1
Claim Your Seller Account
Swivel Head Innerduct Pulling Eyes - Innerduct Installation Tool
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

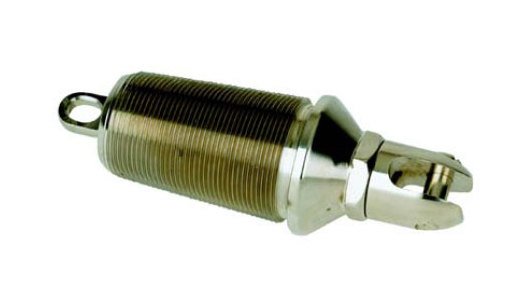

The Swivel Head Innerduct Pulling Eyes revolutionize innerduct installation with their hybrid design incorporating swivels. Featuring a swivel head to prevent twisting and binding during installation, these pulling eyes eliminate the need for separate swivels. Their compact size excels in tight bends, outperforming traditional setups. Easy installation with a 1-3/8' deep socket or adjustable wrench. Ensure precise sizing based on innerduct I.D. measurements for a seamless fit. A versatile solution compatible with Condux multiple pulling harnesses.

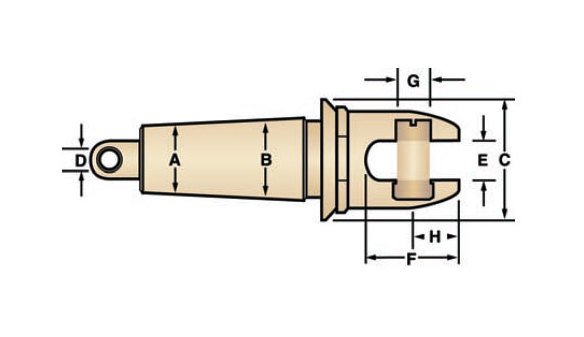

Product Specifications
Specifications Hole Diameter D In
0.44
Specifications Hole Diameter D Mm
11
Specifications Innerduct Id Range A To B In
1.06 to 1.43
Specifications Innerduct Id Range A To B Mm
27 to 37
Specifications Max Od C In
1.75
Specifications Max Od C Mm
44
Specifications Nom Size In
1 to 1-1/4
Specifications Nom Size Mm
25 to 32
Specifications Note
Will fit all Condux multiple pulling harnesses.
Specifications Pin Center H In
0.56
Specifications Pin Center H Mm
14
Specifications Pin Diameter G In
0.44
Specifications Pin Diameter G Mm
11
Specifications Slot Depth F In
1.31
Specifications Slot Depth F Mm
33
Specifications Slot Width E In
0.56
Specifications Slot Width E Mm
14
