Swivel Head Innerduct Pulling Eyes - Innerduct Installation Tool
Swivel Head Innerduct Pulling Eyes - Innerduct Installation Tool
SKU:PUL-69f449
Revolutionary Swivel Head Innerduct Pulling Eyes for efficient and precise installations. Say goodbye to twisting and binding!
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Swivel Head Innerduct Pulling Eyes - Innerduct Installation Tool
$29.99
Quantity: 1
Claim Your Seller Account
Swivel Head Innerduct Pulling Eyes - Innerduct Installation Tool
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

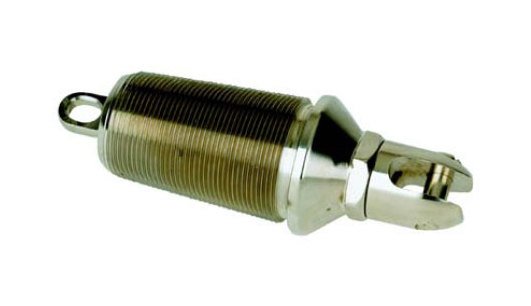

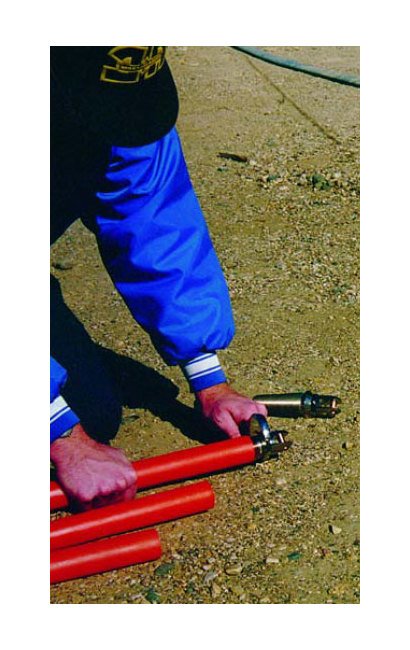

The Swivel Head Innerduct Pulling Eyes revolutionize innerduct installations with their hybrid design combining standard pulling eyes and swivels. Featuring a swivel head to prevent twisting and binding, these pulling eyes eliminate the need for separate swivels. Ideal for installing single or multiple innerducts into conduits, their short length excels in tight bends. Easily install using a 1-3/8" deep socket or adjustable wrench. Ensure a perfect fit by matching the innerduct's inside diameter with the specified range. Experience efficiency and precision like never before with these essential tools for innerduct routing projects.

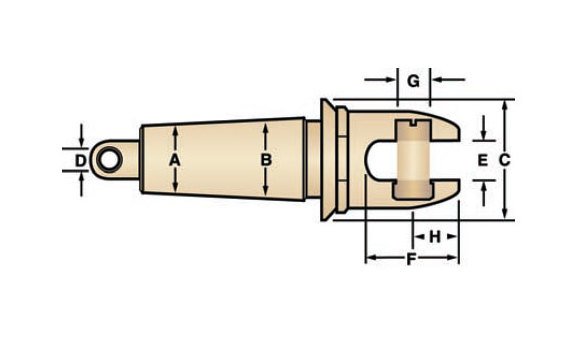

Product Specifications
Specifications Hole Diameter D In
0.44
Specifications Hole Diameter D Mm
11
Specifications Innerduct Id Range A To B In
1.93 to 2.12
Specifications Innerduct Id Range A To B Mm
49 to 54
Specifications Max Od C In
2.44
Specifications Max Od C Mm
62
Specifications Nom Size In
2
Specifications Nom Size Mm
51
Specifications Note
Will fit all Condux multiple pulling harnesses.
Specifications Pin Center H In
0.56
Specifications Pin Center H Mm
14
Specifications Pin Diameter G In
0.44
Specifications Pin Diameter G Mm
11
Specifications Slot Depth F In
1.31
Specifications Slot Depth F Mm
33
Specifications Slot Width E In
0.56
Specifications Slot Width E Mm
14
