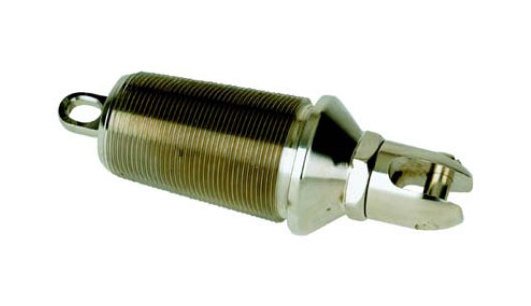

Swivel Head Innerduct Pulling Eyes Tool

Name: Swivel Head Innerduct Pulling Eyes Tool
Brand: Colonial Teltek
SKU: CON-40aea5
Price: 29.99 USD
Availability: OutOfStock

SKU:CON-40aea5

Enhance innerduct installation with the Swivel Head Innerduct Pulling Eyes Tool - efficient, twist-free, and compact design. Perfect for single or multiple innerduct installations.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your innerduct installation process with the Swivel Head Innerduct Pulling Eyes Tool. This hybrid tool seamlessly combines the functionality of standard innerduct pulling eyes and swivels, ensuring a smooth installation without twisting or binding. The swivel head design eliminates the need for multiple swivels, offering a compact and efficient solution. With a short length for navigating tight bends and easy installation using standard tools, this tool enhances your workflow and reduces setup time. Ensure precise sizing by referencing innerduct I.D. measurements within the specified range. Perfect for single or multiple innerduct installations, this tool is a must-have for streamlined conduit projects.

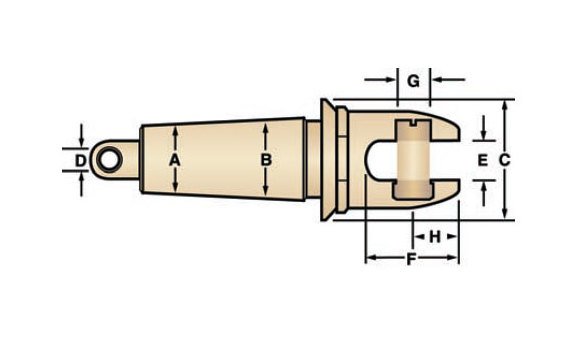

Product Specifications

Specifications Hole Diameter D In

0.44

Specifications Hole Diameter D Mm

Specifications Innerduct Id Range A To B In

1.06 to 1.43

Specifications Innerduct Id Range A To B Mm

27 to 37

Specifications Max Od C In

1.75

Specifications Max Od C Mm

Specifications Nom Size In

1 to 1-1/4

Specifications Nom Size Mm

25 to 32

Specifications Note

Will fit all Condux multiple pulling harnesses.

Specifications Pin Center H In

0.56

Specifications Pin Center H Mm

Specifications Pin Diameter G In

0.44

Specifications Pin Diameter G Mm

Specifications Slot Depth F In

1.31

Specifications Slot Depth F Mm

Specifications Slot Width E In

0.56

Specifications Slot Width E Mm

Swivel Head Innerduct Pulling Eyes Tool
